4K
Focusing Distance ≤ 30cm
EZC-V204K
Focusing Distance ≤ 30cm
EZC-V204K UHD；Focusing Distance ≤ 30cm；18x Optical Zoom

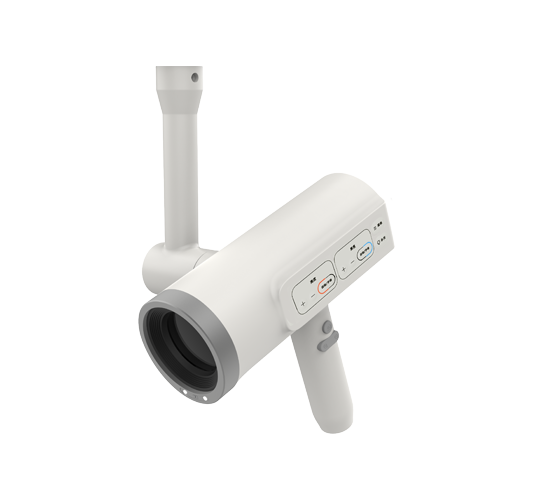

EZC-V20 is a 4K UHD close-up camera tailored for teaching scenarios. Compact with a built-in fill light, it captures sharp operation footage in gaps of large machinery, delivers ≤30cm macro focusing, 18x optical zoom, TOF, one-hand operation...
-
High-Definition PictureTrue-to-Life Scene Reproduction
4K UHD Immersive Visual Feast
Designed for training scenarios, this 4K HD close-up camera delivers rich color layers and captures subtle textures. It restores authentic light and shadow, enables immersive teaching, and boosts classroom efficiency.
-
Clear Focus at Close RangeMeet the Needs of Close-Range Photography

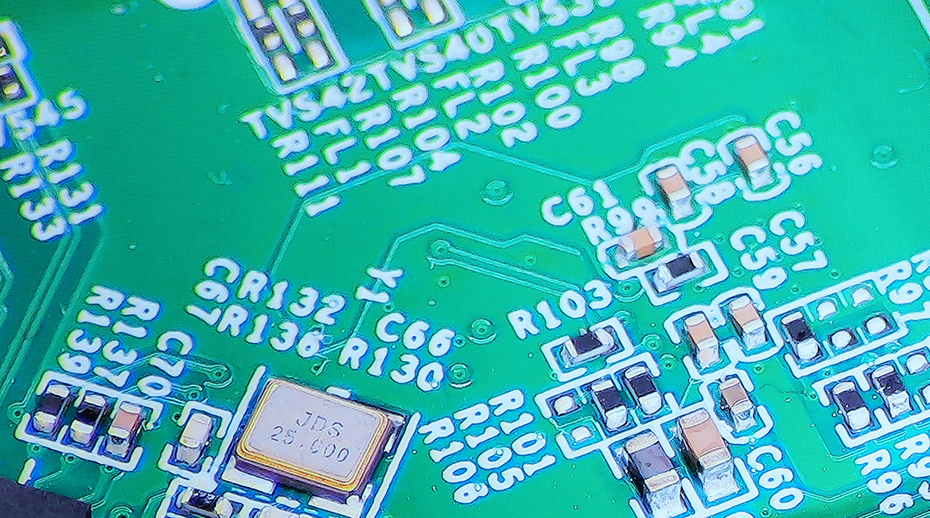

Full-range sharp focusing within 30cm
Tailored perfectly for daily practical training, it supports sharp full-range focusing within 30cm. It clearly presents close-up practical demonstrations and equipment operation explanations throughout.
-
High-Magnification Lossless ZoomBrilliant Presentation of Key Details
18x Optical Zoom
Equipped with 18x optical zoom, it perfectly adapts to close-up and magnified shooting for practical training.
-
TOF FocusClose-up/Full View Switching
TOF Close Sensing Focus
Powered by TOF close-range autofocus, it enables quick switching between wide close and partial close-ups, delivering consistently sharp images at all times.
-
User-friendly Waterproof ConstructionNo Fear of Humid Environments
Camera Body Waterproof Design
Adopting an industrial-grade waterproof structure design, the whole device effectively resists daily splashes, moisture and dust intrusion.
-
Ergonomic DesignSupport One-Hand Operation

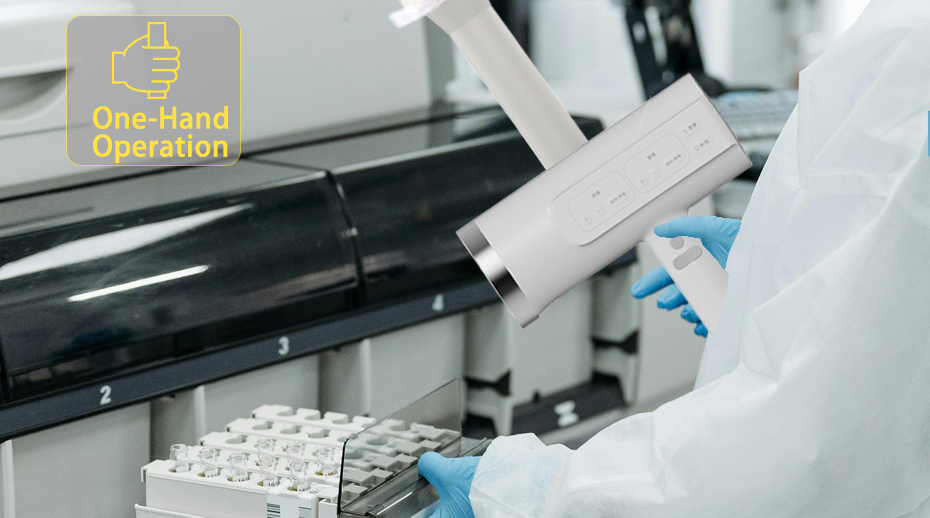

One-Hand Operation for Easier Use
The camera supports comfortable one-handed holding and flexible operation, making teaching effortless and greatly improving teaching efficiency.
-
Built-in SpotlightSuitable for Dim Training Environments

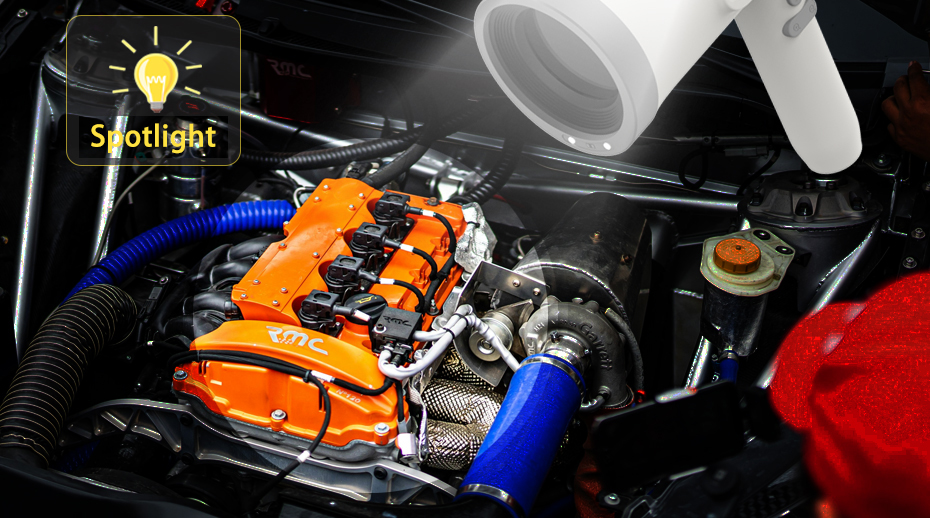

One-touch Spotlight Activation
In low-light environments, simply turn on the spotlight with one touch to make hidden details clearly visible.
- Technical Data
- EZC-V20
-
Camera
- Image Sensor
- 1/2.8" CMOS, 8.6MP
- Max Resolution
- 4KP30（Output）
- Zoom
- 18x Optical, 8x Digital
- Focal
- f=5.1mm ~ 91.9mm
- Iris
- F2.6 ~ F3.2
- HFOV
- 60.35° ~ 3.96°
- Video Adjustment
- Brightness, Chrominance, Saturation, Contrast, Sharpness
- White Balance
- Auto
- Exposure Control
- Auto
- SNR
- ≥50dB
- Buttons
- 10 function buttons (Brightness/Focus/Menu/Fill Light/Freeze/Zoom)
- EPTZ
- Support
-
Others
- HDMI
- 3840x2160p30, 3840x2160p25, 1920x1080p60, 1920x1080p50, 1920x1080p30, 1920x1080p25, 1280x720p60, 1280x720p50, 1280x720p30, 1280x720p25
- Network
- 10M/100M, POE, H.264/H.265, Default H.264; Main Stream：3840x2160p30, 3840x2160p25, 1920x1080p60, 1920x1080p50, 1920x1080p30, 1920x1080p25, 1280x720p60, 1280x720p50, 1280x720p30, 1280x720p25, 1024x576p60, 1024x576p50, 1024x576p30, 1024x576p25, 960x540p60, 960x540p50, 960x540p30, 960x540p25, 640x360p60, 640x360p50, 640x360p30, 640x360p25, 320x180p60, 320x180p50, 320x180p30, 320x180p25; Sub Stream：1280x720p60, 1280x720p50, 1280x720p30, 1280x720p25, 1024x576p60, 1024x576p50, 1024x576p30, 1024x576p25, 960x540p60, 960x540p50, 960x540p30, 960x540p25, 640x360p60, 640x360p50, 640x360p30, 640x360p25, 320x180p60, 320x180p50, 320x180p30, 320x180p25
- Operating System
- Windows 7/8/10, Mac OS, Android OS, Linux
-
General
- Power Consumption
- ＜7W
- Power
- DC 12V，POE
- Operating Temperature
- 0°C ~+40°C
- Storage Temperature
- -20°C ~+60°C
- Dimensions (L×W×H)
- 222mm×177mm×214mm
- Weight
- 1.8Kg
