4/3"

PDAF, Free-D, 12G-SDI, Gen Lock, Time Code

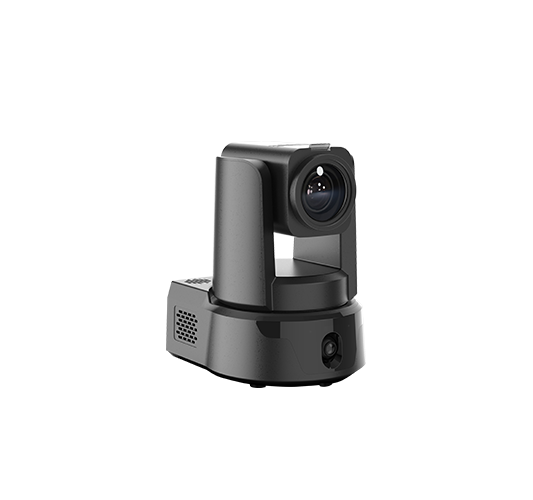

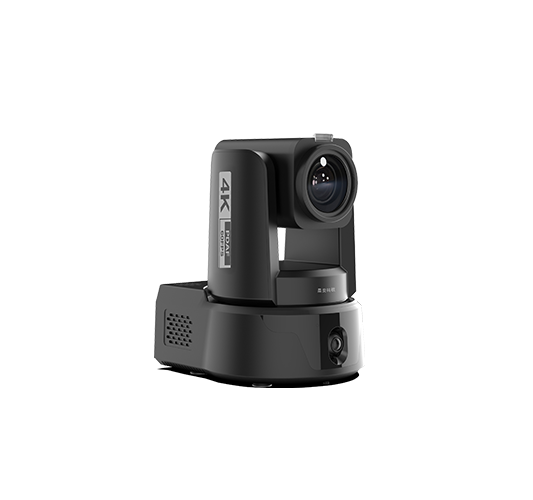

PBC-120

4/3"

PDAF, Free-D, 12G-SDI, Gen Lock, Time Code

PBC-120

Simultaneous Output of 4KP60 Close-up Image and 4KP60 Full View Image

The PBC-120 features a 4/3-inch CMOS sensor, 20 MP, support dual 4KP60 video output, With 20x optical zoom, it is suitable for larger scenes. And it supports simultaneous video output through 12G-SDI and 3G-SDI.

UHD Lens

Ultra High Definition Lens Gives You a Higher-Definition Vision

PBC-120

4/3_inch

Sensor Size

20_MP

Pixel

9.8~186_mm

Focal Length

F2.8~4.5

Iris

71°~4°

HFOV

20_x

Optical Zoom

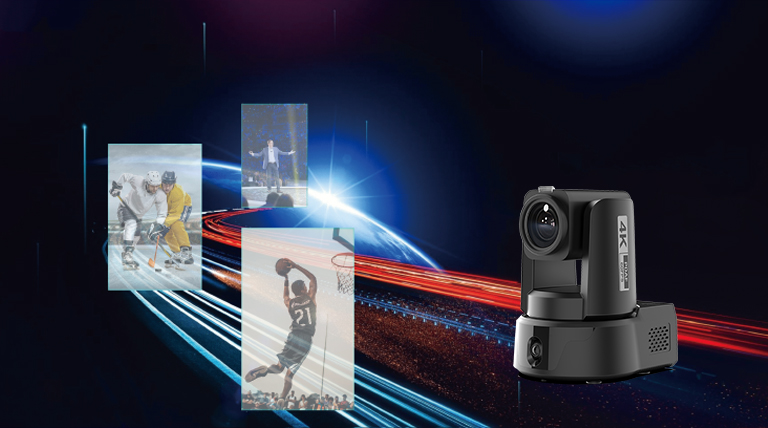

Ultra High Definition Images

The camera gives you clear vision of the scenarios at 4K resolution

4KP60
Enjoy a Clear Picture

It delivers super UHD video for your work application.

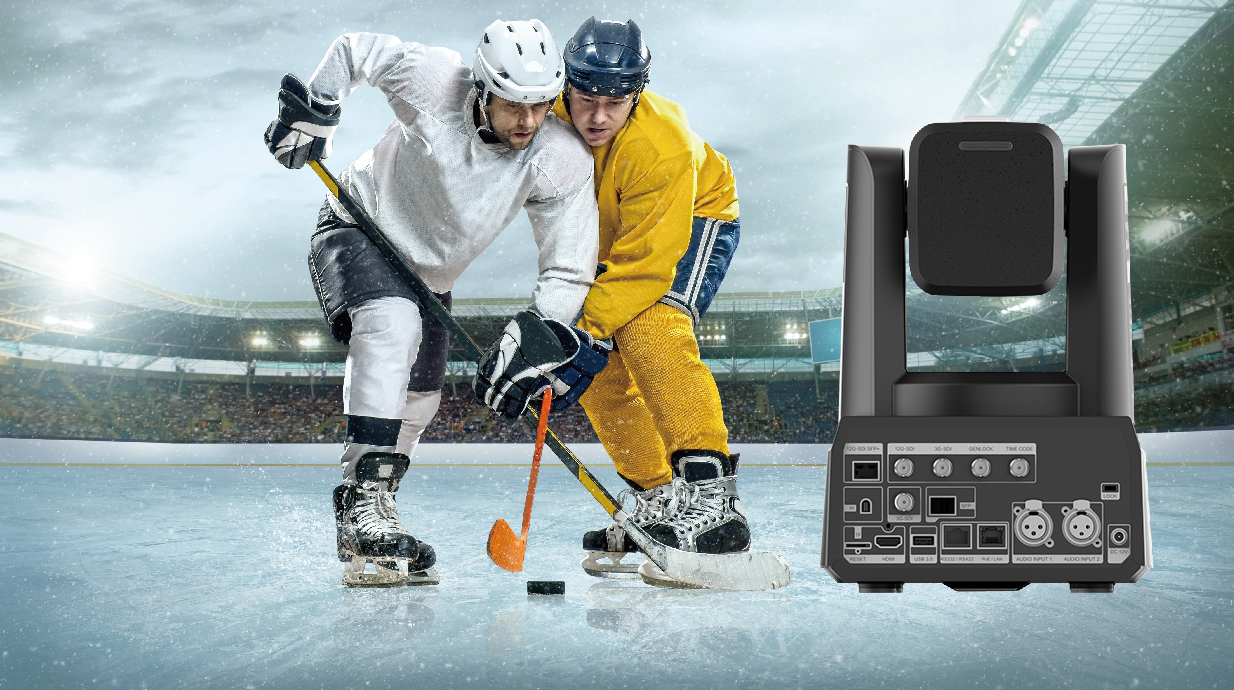

Support 12G-SDI

Powerful Transmission Capability

12G-SDI, 3G-SDI, HDMI, RJ45,USB3.0

The leading 12G-SDI interface brings much more bandwidth than ever and major benefits for live events, broadcast studios, on set and live venues.

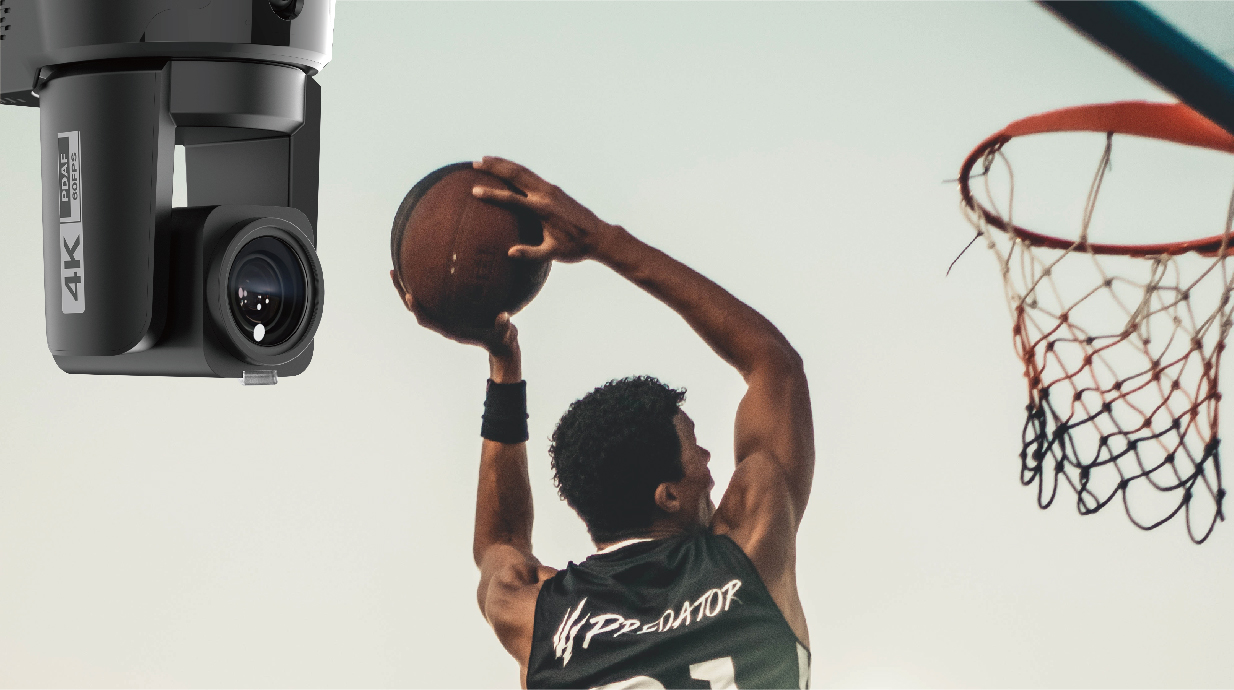

20x Optical Zoom

Suitable for Most Scenarios

Show More Detail

With the 20x optical zoom technology, it can thoroughly explore the on - site details. Even when dealing with fast - moving people, it can achieve clear and smooth image capture, providing reliable visual support for professional application scenarios.

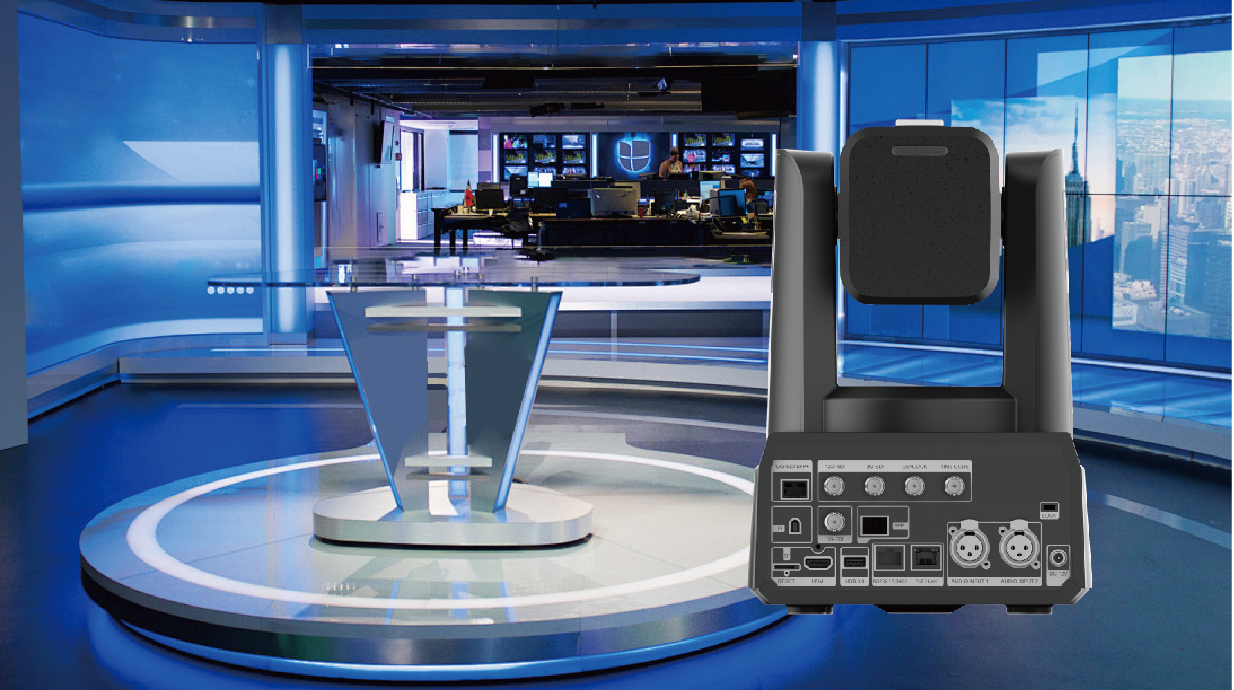

Supports Most Mainstream Protocols

Faster, Clearer, and Safer Transmission

NDI HX3, Dante AV-H, SRT

The camera supports protocols such as NDI HX3, Dante AV-H, SRT, Optional Full NDI, HDBaseT, or SDVoE； enabling clearer, faster, and more secure video transmission.

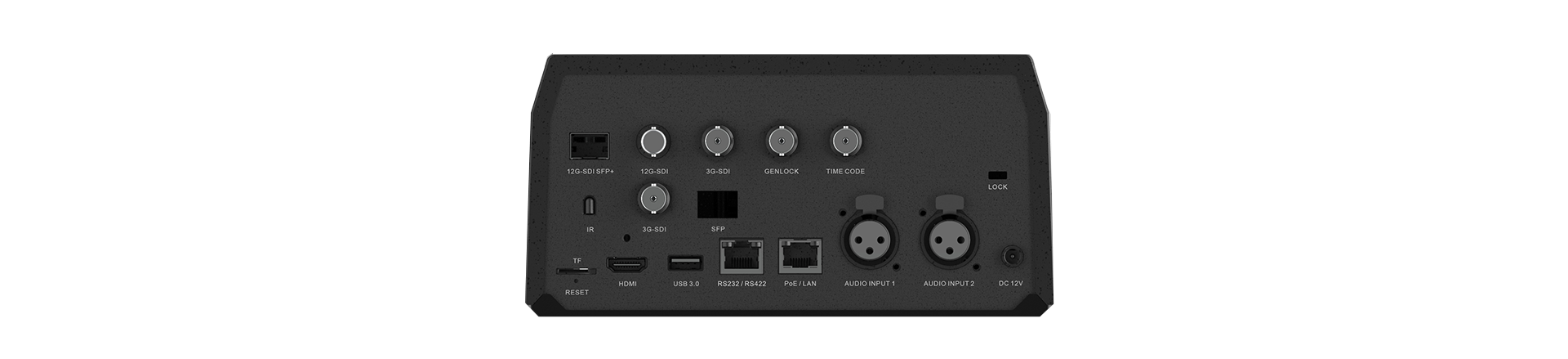

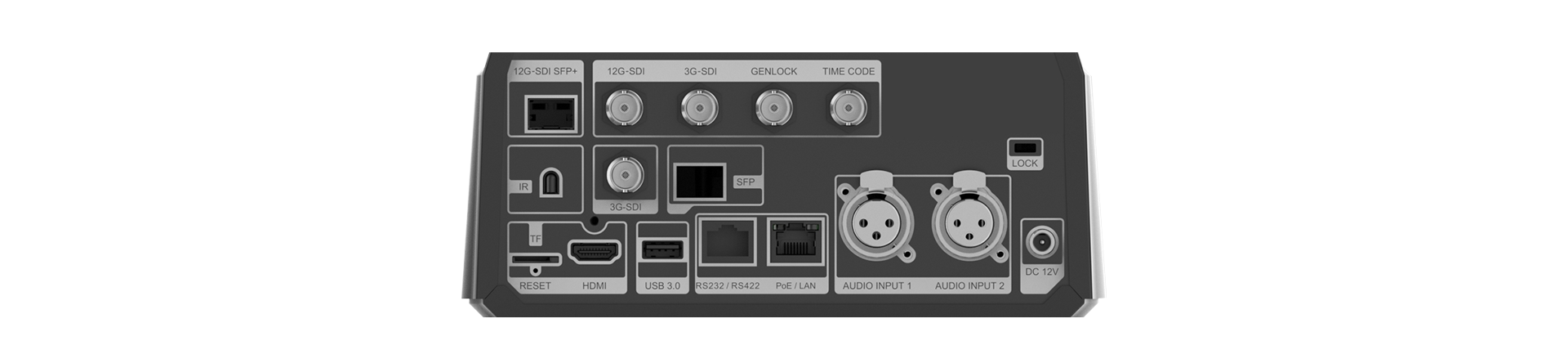

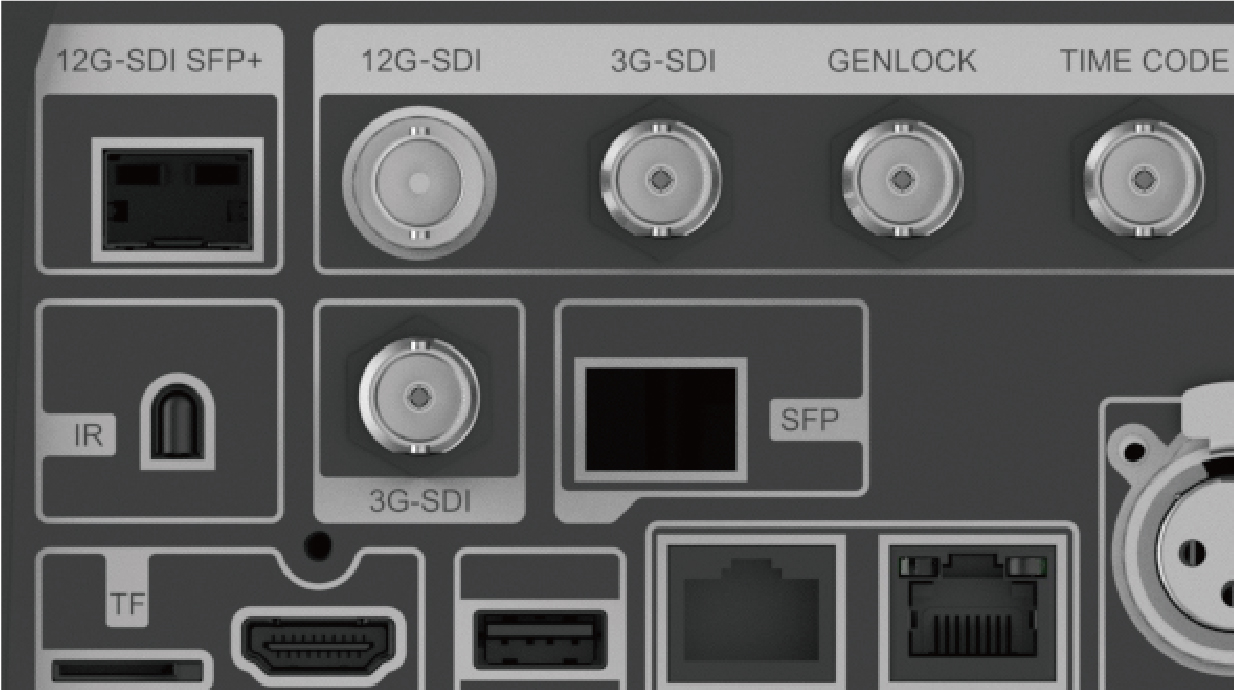

Interface

Support 12G-SDI, 3G-SDI, HDMI, LAN, USB 3.0, Gen Lock, Time Code, Fiber.

Lecturer Tracking

Accurate Identification & Stable Tracking

Feature One

Feature Two

Feature Three

In the Crowd

Automatically Identify & Lock Lecturer and Keep Tracking

Strong Ability

Track Even if Lecturer Wears Mask.

Intelligent Adjustment

Auto Adjust Tilt Angle as per Lecturer's Height.

Gesture Control

More convenient operation

Feature One

Feature Two

Feature Three

Only Use Gestures to Indicate

During recording/live streaming

It won’t be interrupted due to operations.

Support Recognition of Multiple Gestures

You can control the camera through gestures such as zooming in/out.

Efficient, Fast, and Intelligent

Intelligent algorithms help the camera quickly recognize gestures and respond accordingly.

Auto Framing with No Man Involved

Using Intelligent Image Algorithm.

Feature One

Feature Two

Feature Three

Auto Frame All Attendees

Cameras auto zooms and covers all the attendees in the room.

Auto Zoom in for Attendee Leaving

Camera auto zooms in when there is attendee leaving the room.

Auto Zoom Out for New Attendees

Camera auto zooms out when there are new attendees entering the room.

Anti Interference

Not Affected by Moving Objects and External Environment

Feature One

Feature Two

Feature Three

Intelligent Identification

The camera can recognize and frame the attendees even if they turn their backs to the camera.

Intelligent Identification

Intelligent Resolution of Wall Portraits.

Strong Anti-Interference Ability

The camera is not disturbed by moving objects.

Applications

Education/Conference/Broadcasting/Events

PBC-120

Technical Data: PBC-120

Tracking Camera

Image Sensor

4/3" CMOS, 20MP

ND Filter

Switchable: 1/64, 1/16, 1/4, 1

Maximum Fesolution

4K60

Zoom

20x Optical Zoom; 16x Digital Zoom

Field of View

HFOV: 71°～4°

Focal

f=9.8mm～186mm

Iris

F2.8～F4.5
Full View Camera

Image Sensor

1/1.8"CMOS, 8.46MP

Maximum Resolution

4KP60

Lens

f=4.4mm; F2.0

HFOV

85°
PTZ

Pan

-170° ~ +170°, 0.05°～120°/s

Tilt

-30° ~ +90°, 0.05°～90°/s

Preset Number

256
Interface

SDI

1×12G-SDI,with audio 4KP60/P59.94/P50/P30/P29.97/P25; 1080P60/P59.94/P50/P30/P29.97 /P25; 1080i60/i59.94/i50; 720P60/P59.94/P50/P30/P29.97/P25;1x 3G-SDI, with audio 1080P60/P59.94/P50/P30/P29.97/P25; 1080i60/i59.94/i50; 720P60/P59.94/P50/P30/P29.97/P25

USB

1 x USB 3.0 Type-A(compatible with HOST), Supports audio output via UAC, support UVC 1.1, RGB 420; UVC video formats: H.264/H.265/MJPEG: up to 4KP60; YUY2/NV12: up to 1080P30

HDMI

1x HDMI 2.0, supports audio output, supports YUV/RGB 444 (8-bit), YUV422 (10-bit), YUV 420 (8-bit) 4KP60/P59.94/P50/P30/P29.97/P25;1080P60/P59.94/P50/P30/P29.97/P25; 1080i60/i59.94/i50; 720P60/P59.94/P50/P30/P29.97/P25

Network

1x RJ45, 100M/1000M , support POE, capable of AAC/G.711 audio output; Video formats supported: H.264, H.265, MJPEG; 4KP60/P50/P30/P25; 1080P60/P50/P30/P25; 720P60/P50/P30/P25; 360P60/P50/P30/P25; Network protocols: RTSP/RTMP/RTMPS/Visca Over IP/ONVIF/SRT/NDI HX2/NDI HX3/ Dante AV-H; Supports dual-stream output for main and sub streams; Supports WEB UI, CGI, HTTP

SFP

1 optical fiber interface, configurable to 12G-SDI

One of Three Options

Choose one from Full NDI, HDBaseT, and SDVoE; Full NDI, capable of audio output, supports POE++; SDVoE, capable of audio output, supports POE++; HD-BaseT, capable of audio output, supports POE++

Audio Interface

2 x Audio Input XLR sockets with phantom power support; Supports ACC/UAC; Sampling rates supported: 16k, 32k, 48k

Reset Button

Restore Factory Settings

Control Interface

1x RS-232/422

Security Lock Slot

1x Kensington Lock

Memory Card

Supports 1x external Micro SD, up to 2TB storage capacity

Time Code

1x BNC input

Gen- Lock

1 BNC external synchronization Gen-Lock interface
General

Power

DC12V, 5A

Control Protocol

Visca/Pelco-P/Pelco-D

Indicator Light

Power light, status light, dual Tally lights

Menu

Support

Installation Method

Upright, inverted (panoramic lens adjustable ±20°)

Remote Control Range

15m, dual infrared in front and rear of camera

Dimensions(L×W×H)

239mm*208mm*291mm

Focus

PDAF, CDAF, Face AF

Image Mode

One-click switching between multiple image modes

Wide Dynamic Range

Dynamic Range: 0/1/2/3/4/5

Metering Mode

Top, Bottom, Center, Average, Left, Right
