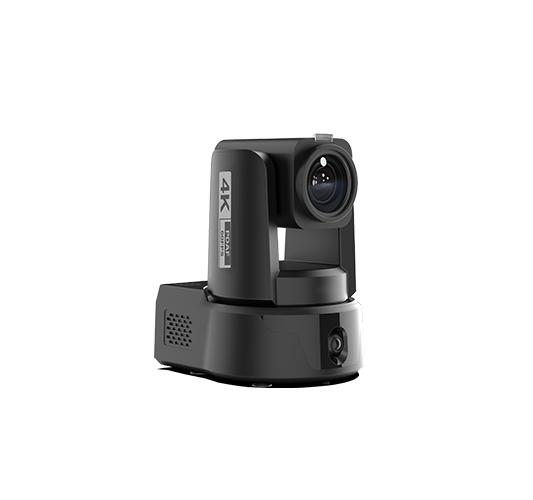

PBC-120F/PBC-120S

4/3″ CMOS, 20MP, 4KP60/P59.94@Dual Cam

The camera has professional image details and colors. 20x optical zoom, 71°HFOV. With OIS + EIS anti - shake, PDAF + CDAF focusing, OLPF for moiré removal, and ND filter for light adjustment. Support 12G-SDI.

UHD Lens
Ultra High Definition Lens Gives You a Higher-Definition Vision

  • PBC-120

    Sensor Size

    Pixel

    Focal Length

    Iris

    HFOV

    Optical Zoom

Excellent Texture and Abundant Details
Shocking Visual Experience

4/3″ CMOS
Broadcast-grade UHD Imaging

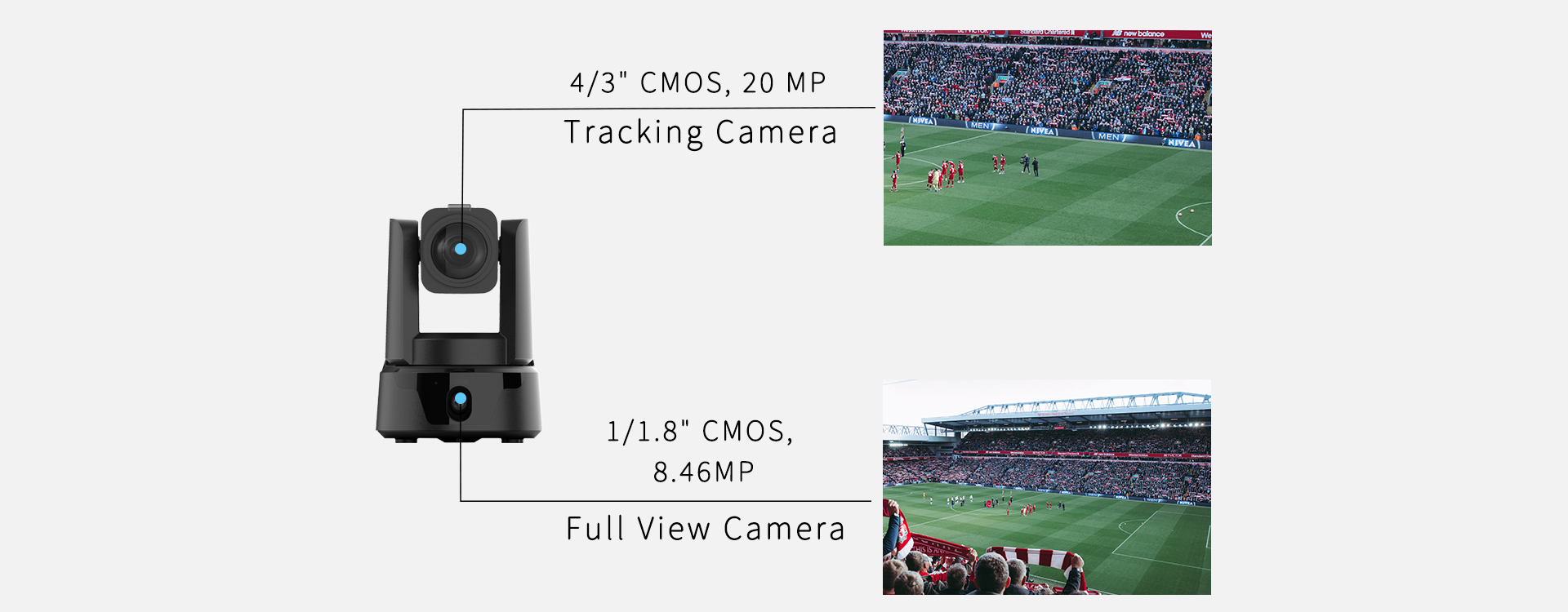

Fitted with a 4/3″ CMOS close up sensor and a 1/1.8″ CMOS full view sensor, 20 MP close up lens supports high quality broadcast-grade dual-camera output up to 4K P60/P59.94.

Suitable for Large-Scale Scenes.
Lossless Enlargement with Clear Details

20x Optical Zoom

Diverse Application Scenarios.It vividly captures rich details even from far distance. Ideal for large-scale program production and live sports broadcasts, its compact design allows seamless adaptation to complex environments.


Multifunctional Interface
Convenient and Efficient Output

Optional Dual 12G-SDI Simultaneous Output

Optional Dual 12G-SDI interfaces(one BNC and one SFP+) enable simultaneous output of two 4KP60 high-quality pictures. High-spec interfaces like GenLock, and Time Code enable professional recording connections and post-production editing.

Exceptional Focusing Technology
Keep a Clear View Throughout the Shot

PDAF+CDAF

The combination of PDAF and CDAF focusing technologies enables instant focusing on people/objects in large scenes, at high zoom, and during high-speed movement, ensuring continuous clear image output.


Professional Anti-Shake
Output Stably from Start to Finish

Excellent OIS and EIS technologies

OIS and EIS fit diverse indoor/outdoor scenarios. Even in harsh outdoor conditions, the camera, powered by dual OIS and EIS, ensures steady, high-quality footage during recording.

Reduce the Interference of Streaks
Present Clear Image

OLPF Technology Eliminates Moiré Patterns

OLPF technology can reduce and eliminate moiré patterns caused by grids, shutters, and electronic screens during shooting. Even when using an LED screen as the background, it can stably output high-quality footage for film and television production.


A Fantastic Design
Adjustable Camera Light Intake

Multiple Levels of ND Filters are Adjustabl

The adjustable ND filter enables users to control the camera’s light intake. Even in direct daytime sunlight, it can still output high - quality images. The pre - reserved threaded interface allows direct installation of personalized filters, adding a unique atmosphere to the film.

Boost Virtual Live Streaming
Immersive Experience

Free-D Protocol, Seamless Connection in AR/VR Creation

The Free-D protocol can be used for AR/VR creation. Ensure seamless integration between virtual elements and real scenes, bringing a highly immersive viewing experience to the audience.


Support multiple protocols
Convenience for the Production and Transmission

Full NDI(Optional)

Optional Full NDI, SDVoe or HDBaseT,It facilitates the lossless and efficient transmission of videos, significantly saving wiring costs and time and improving the efficiency of film and television production.

PBC-120F Interface

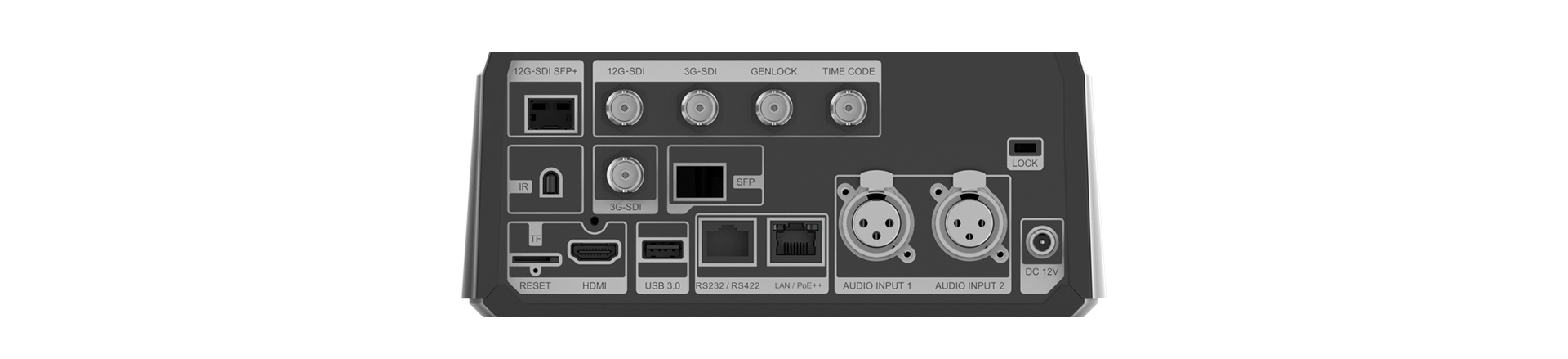

Dual 12G-SDI, 3G-SDI, HDMI, LAN, USB 3.0, Gen Lock, Time Code, Fiber.


PBC-120S Interface

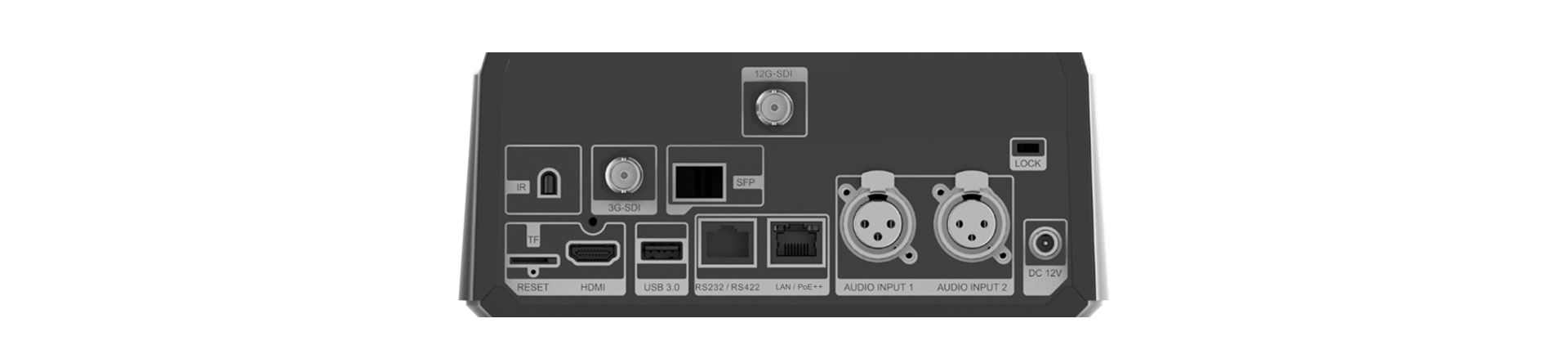

12G-SDI, 3G-SDI, HDMI, LAN, USB 3.0 etc.


Lecturer Tracking
Accurate Identification & Stable Tracking
Feature One
Feature Two
Feature Three

In the Crowd

Automatically Identify & Lock Lecturer and Keep Tracking

Strong Ability

Track Even if Lecturer Wears Mask.

Intelligent Adjustment

Auto Adjust Tilt Angle as per Lecturer's Height.

Gesture Control
More convenient operation
Feature One
Feature Two
Feature Three

Only Use Gestures to Indicate

During recording/live streaming


It won’t be interrupted due to operations.

Support Recognition of Multiple Gestures

You can control the camera through gestures such as zooming in/out.


Efficient, Fast, and Intelligent

Intelligent algorithms help the camera quickly recognize gestures and respond accordingly.


Auto Framing with No Man Involved
Using Intelligent Image Algorithm.
Feature One
Feature Two
Feature Three

Auto Frame All Attendees

Cameras auto zooms and covers all the attendees in the room.

Auto Zoom in for Attendee Leaving

Camera auto zooms in when there is attendee leaving the room.

Auto Zoom Out for New Attendees

Camera auto zooms out when there are new attendees entering the room.

Anything Tracking
Not Affected by Moving Objects and External Environment
Tracking Characteristics

Track Any Object in the Frame by Selection

Make tracking a trend and a habit, and create an immersive creative atmosphere.

Applications
Education/Conference/Broadcasting/Events


PBC-120F/PBC-120S
Technical Data
PBC-120F/120S
  • Tracking Camera
    Image Sensor
    4/3" CMOS, 20MP
    Max Resolution
    4KP60
    Focal Length
    f=9.8mm～186mm
    Iris
    F2.8～F4.5
    Optical Zoom
    20X
    Digital Zoom
    8X
    Field of View
    Horizontal：71°～4°；Vertical：40°～2°；Diagonal：79°～4.5°
    OLPF
    Supported
    ND Filter
    Electronic：1/64，1/16，1/4，1
    Distortion Correction
    Supported
    Focusing Mode
    PDAF+CDAF
  • Full View Camera
    Image Sensor
    1/1.8"CMOS, 8.46MP
    Maximum Resolution
    4KP60
    Lens
    f=4.4mm; F2.0
    Field of View
    Horizontal：85°；Vertical：53°；Diagonal：93°
    Adjustable Angle
    Vertical：±20°
  • Image Parameters
    Image Style
    One-key switching among multiple image styles
    DNR
    2D & 3D
    Min Illumination
    0.5Lux
    Shutter Speed
    1/25-1/10,000s
    Gain
    Auto, Manual
    White Balance
    Auto, Manual, Indoor, Outdoor, Auto Tracking, Static Color Temperature, One push, Follow the Full View
    Backlight Compensation
    Supported
    WDR
    Supported
    High Dynamic Range
    Supported
    Exposure Mode
    Auto, Manual, Shutter Priority, Brightness Priority, Iris Priority, Auto Tracking, Follow the Full View
    Metering Mode
    Top, Bottom, Center, Average, Left, Right
    S/N Ratio
    ≥50dB
    Parameter Adjustment
    Image parameters of close up and full views can be adjusted independently
    Color Matrix
    Supported
    Image Stabilization
    OIS + EIS
    Image Flip
    Horizontal mirroring, Vertical flipping
  • PTZ
    Horizontal
    -170°~+170°; 0.05°~120°/s
    Vertical
    -30°~+90°; 0.05°~90°/s
  • Software Function
    PIP
    Supports picture-in-picture function for both close-up and full viewsPIP position：top-left, bottom-left, top-right, and bottom-right.
    OSD
    Customized overlay of OSD character
    Preset Position Freezing
    Supported
    Software Upgrade
    1. USB upgrade, supporting Windows and Mac systems; 2. WEB upgrade
  • Powerful AI
    Lecturer Tracking
    1. Supports everywhere tracking, zone tracking, and selected target tracking; 2. Supports two tracking ways: dual cam tracking and single cam tracking; 3. Supports adjustable target tracking aspect ratio(Full body, half body, close up); 4. Supports setting the target position of the image (left, middle, right); 5. Supports the setting of blocking areas and preset areas; 6. Support switching target and adjustable body size by remote contorl; 7. Gesture Control
    Auto Framing
    Multi-person framing (framing within designated zone)Support people counting
    Anything Tracking
    Track any object besides human body
  • Interface
    HDMI
    1-channel HDMI 2.0; 1. Audio: PCM, 48K, dual-channel; 2. Color space: YUV/RGB 444 (8bit), YUV 422 (10bit), YUV 420 (8bit) [The default color space is YUV 422 (10bit)]; 3. Video resolutions: 3840*2160@60/50/30/25fps; 1920*1080@60/50/30/25fps; 1280*720@60/50/30/25fps; 4. i-frame resolutions: 1080i@60/59.94/50fps; 5. Broadcast TV resolutions: 3840*2160@59.94/29.97fps; 1920*1080@59.94/29.97fps; 1280*720@59.94/29.97fps
    Network
    1-channel RJ-45 interface, supporting 10M/100M/1000M adaptive Ethernet. It comes standard with a BT standard POE module and can output audio in AAC format; 1. Video formats: H.264/H.265/MJPEG; 2. Video resolutions:3840*2160@60/50/30/25fps; 1920*1080@60/50/30/25fps; 1280*720@60/50/30/25fps; 640*360@60/50/30/25fps; 3. Network protocols:RTSP, RTMP, RTMPS, Visca Over IP, ONVIF, SRT, NDI HX3, Dante AV-H; 4. Audio compression: AAC; 5. Supports multi-stream output; 6. Supports Web UI, HTTP API
    USB
    1-channel USB 3.0 Type-A (switchable between HOST and DEVICE); 1. Audio output: UAC (PCM, 48K, dual-channel); 2. Color space: RGB 420; 3. Compatible with USB 2.0; 4. UVC 1.1 protocol; 5. UVC video formats:•USB 3.0:H.264/H.265/MJPEG: 3840*2160@60/50/30/25fps; 1920*1080@60/50/30/25fps; 1280*720@60/50/30/25fps; 640*360@60/50/30/25fps; YUY2/NV12：1920*1080@30/25fps; 1280*720@30/25fps; 640*360@30/25fps; •USB2.0：H.264/H.265/MJPEG：1280*720@30/25fps; 640*360@30/25fps
    3G-SDI
    Two channels of 3G-SDI（One channel optical）, one for close-up and one for full view, with audio output supported (PCM, 48K, dual-channel); 1. Video resolutions:1920*1080@60/50/30/25fps; 1280*720@60/50/30/25fps; 2.(Optional) i-frame resolutions (3G-SDI supports close up view): 1080i@60/59.94/50fps; 3. Supported broadcast TV resolutions (3G-SDI supports close up view):1920*1080@59.94/29.97fps; 1280*720@59.94/29.97fps)
    12G-SDI
    Two channels of 12G-SDI（One channel optical） (one BNC and one SFP+), with audio output supported (PCM, 48K, dual-channel); 1. Video resolutions:3840*2160@60/50/30/25fps; 1920*1080@60/50/30/25fps; 1280*720@60/50/30/25fps; 2. i-frame resolutions:1080i@60/59.94/50fps; 3. Broadcast TV resolutions:3840*2160@59.94/29.97fps; 1920*1080@59.94/29.97fps; 1280*720@59.94/29.97fps
    SFP
    One fiber optic network interface
    GenLock（Optional）
    One BNC interface for input only
    Time Code（Optional）
    One BNC interface for input only
    Full NDI（Optional）
    One channel of Full NDI, capable of audio output, supporting POE++ (mutually exclusive with HDBaseT and SDVoE). The video resolutions and formats are the same as those of HDMI
    SDVoE（Optional）
    One channel of SDVoE, which can output audio and supports POE++. (mutually exclusive with HDBaseT and Full NDI). The video resolutions and formats are the same as those of HDMI
    HDBaseT（Optional）
    One channel of HDBaseT, capable of audio output and supporting POE++ (mutually exclusive with SDVoE and Full NDI). The video resolution and format are the same as those of HDMI
    Audio
    Two Audio-Input XLR Cannon sockets:1. Phantom power supply； 2. Support AAC/UAC； 3. Sampling rates: 16k, 32k, and 48k.
    Factory Reset
    Can be restored by pressing the reset button
    Control
    One channel RS-232/422（RJ45）Support Visca, Pelco-P, and Pelco-D protocols
    Security Lock Slot
    One channel Kensington Lock
    TF Card
    External TF card, MAX 2TB, setting by web UI
    Power
    Input: 100-240V, 50-60Hz, output: DC 12V, 5A
  • General
    Preset Number
    256
    Indicator Light
    Power indicator, status indicator, dual tally lights
    Language
    English
    Installation Method
    Upright, Inverted
    Operating Temperature
    Temperature: 0°C~+40°C; Humidity: 10%RH~90%RH
    Storage Temperature
    Temperature: -20°C~+60°C; Humidity: 10%RH ~95%RH
    Dimensions (L*W*H)
    208.3mm*238mm*299.3mm
    Weight
    ≤5kg
    Infrared Remote Control
    Supported
