1080P60

Auto Framing & Speaker Tracking

AMC-G200TH

1080P60

Auto Framing & Speaker Tracking

AMC-G200TH

Up to 1080P60
Meet Various Video Conference Needs

G200TH adopts advanced intelligent algorithm, auto framing, speaking tracking and outputs 1080P images to meet various video conference needs.

HD Lens
High-Definition Lens Gives You a Higher-Definition Vision
  • AMC-G200TH

    Sensor Size

    Pixel

    Focal Length

    Iris

    FOV

    Optical Zoom

High Definition Images
The camera gives you clear vision of the scenarios at 1080P resolution

Wide Angle HD Lens
Transmitting Clear Pictures

1080P60 HD video output, equipped with intelligent exposure function, optimizes the image to restore the true color, and the details are clearly visible to improve the efficiency of the meeting.


Interface
Support USB, LAN, HDMI, 3G-SDI


Auto Framing with No Man Involved
Using Intelligent Image Algorithm
Feature One
Feature Two
Feature Three

Auto Frame All Attendees

Cameras auto zooms and covers all the attendees in the room.

Watch Video

Auto Zoom in for Attendee Leaving

Camera auto zooms in when there is attendee leaving the room.

Watch Video

Auto Zoom Out for New Attendees

Camera auto zooms out when there are new attendees entering the room.

Watch Video
Anti Interference
Not Affected by Moving Objects and External Environment
Feature One
Feature Two
Feature three

Intelligent Identification

The camera can recognize and frame the attendees even if they turn their backs to the camera.


The face orientation of the attendees has no effect on camera recognition.

Intelligent Identification

Intelligent Resolution of Wall Portraits.


Strong Anti-Interference Ability

The camera is not disturbed by moving objects.


Precise Voice Positioning
Voice Source Localization + Lock Tracking
Feature One
Feature Two
Feature Three

When No One Speaking

Camera Frames All Attendees.

Watch Video

When Someone Speaking

The camera locks and tracks the speaker and give a close-up shot.

Watch Video

When the Speaker Changes

Camera Locks and Tracks New Speakers.

Watch Video
Strong Anti-Interference Ability
Not Disturbed by Sound and Meeting Environment
Feature One
Feature Two
Feature Three

Anti-Interference Function

Sounds other than the speaker's voice do not interfere with speech localization;
Sounds such as keyboard typing will not interfere with the camera positioning the speaker.

Precise Positioning

Accurate positioning of speakers can be achieved even if there are multiple people in the same direction.

The Screen Switching is Natural and Smooth

The Meeting Experience is Smoother and Clearer.

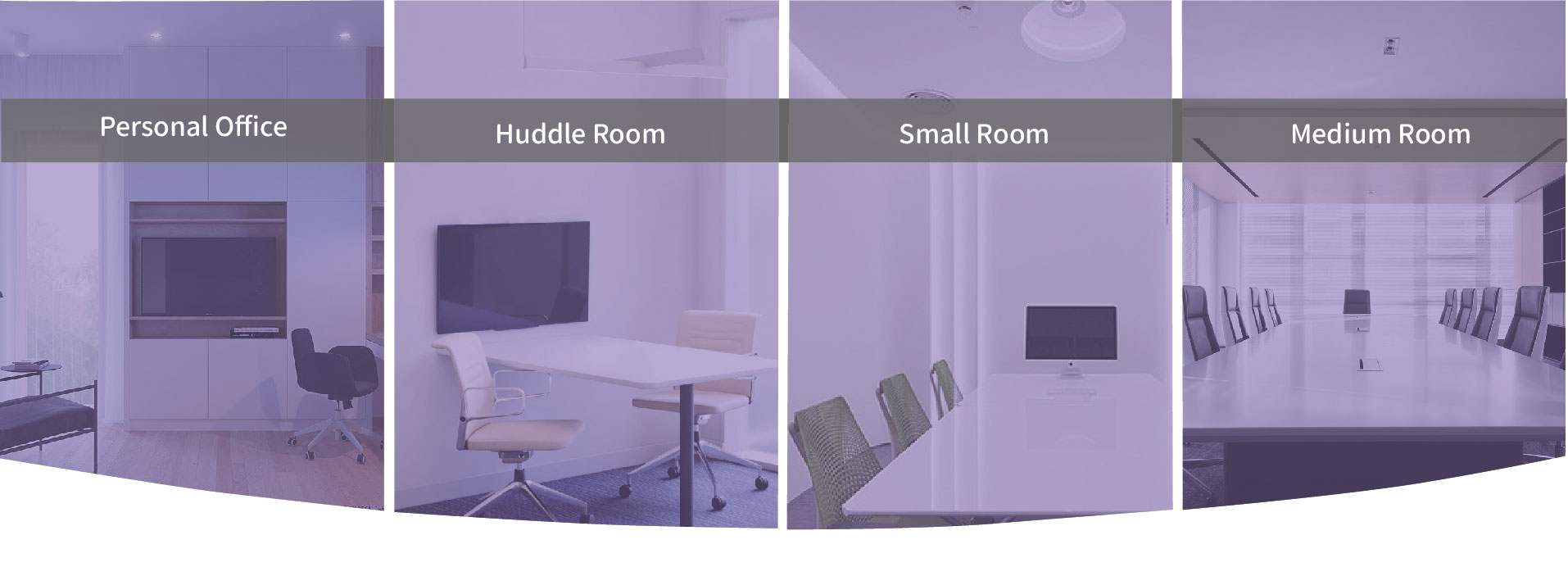

Applications
Personal Office/Huddle Room/Small Room/Medium Room

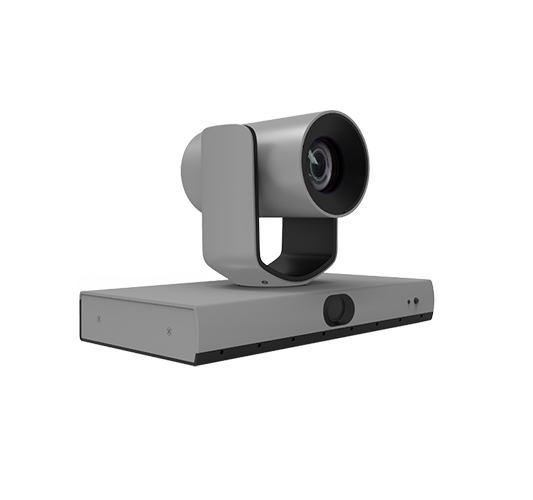

AMC-G200TH
Technical Data
AMC-G200TH
  • Camera
    Image Sensor
    1/2.8” CMOS, 2.14MP
    Focal Lens
    3.9mm~46.8mm
    Iris
    F1.6~F2.8
    FOV Horizontal
    72.5°~6.3°
    Zoom
    Optical: 12X, Digital: 12X
    Focus
    Auto, Manual, PTZ Push, One Push
    Shutter Speed
    1/25 ~ 1/10,000s
    AGC
    Auto/Manual
    White Balance
    Auto, Indoor, Outdoor, One Push, Manual, Auto Tracking
    Exposure
    Auto, Manual, Shutter Priority, Iris Priority
    SN Ratio
    ≥50dB
    BLC
    Support
  • Full View Camera
    Image Sensor
    1/2.5” 4K CMOS Sensor, 8.57MP
    Lens
    2.8mm focal length , 4X digital zoom
    FOV
    98°
    DNR
    2D/3D
    Video Adjustment
    Support EPTZ
  • PTZ
    Pan
    -90° ~ +90°, 0.1° ~ 100°/ s
    Tilt
    -30° ~ +90°, 0.1° ~ 80°/s
    Preset Number
    64
  • Network
    Max Image Size
    1080P60
    Video Compression
    H.264/H.265/MJPEG
    Audio Compression
    AAC
    Protocols
    HTTP/RTSP/RTMP/RTP/TCP/UDP/ONVIF
    Multi-Stream
    Support 1×close-up view, 1×full view, 1×switched between view
  • Interface
    SDI
    1×3G-SDI, Video Format: 1080P60/50/30/25, 720P60/50
    HDMI
    1×HDMI, Video Format: Same as SDI
    USB
    1×USB2.0, support UVC/UAC
    Audio Input
    2×3.5mm Line In , including 1 channel AEC reference audio input
    Network Interface
    10M/100M RJ45
  • General
    Control Protocol
    VISCA
    Address
    1 - 6
    Power
    DC12V
    Power Consumption
    <20W
    Operating Environment
    Temperature: 0°C ~ +40°C, Relative Humidity: 10%RH ~ 90 %RH
    Storage Environment
    Temperature: -20℃ ~ +60°C, Relative Humidity: 10%RH ~ 95 %RH
    Dimensions (L×W×H)
    245mm×145mm×165mm
    Weight
    <2kg
