1080P60
Auto Framing & Speaker Tracking
AMC-G200THV21080P60
Auto Framing & Speaker Tracking
AMC-G200THV2 AMC-G200THV2
Up to 1080P60
Meet Various Video Conference Needs
G200THV2 adopts advanced intelligent algorithm, auto framing, speaking tracking and outputs 1080P images to meet various video conference needs.
HD Lens
High-Definition Lens Gives You a Higher-Definition Vision
-
High Definition ImagesThe camera gives you clear vision of the scenarios at 1080P resolution
Wide Angle HD Lens
Transmitting Clear Pictures1080P60 HD video output, equipped with intelligent exposure function, optimizes the image to restore the true color, and the details are clearly visible to improve the efficiency of the meeting.
-
-

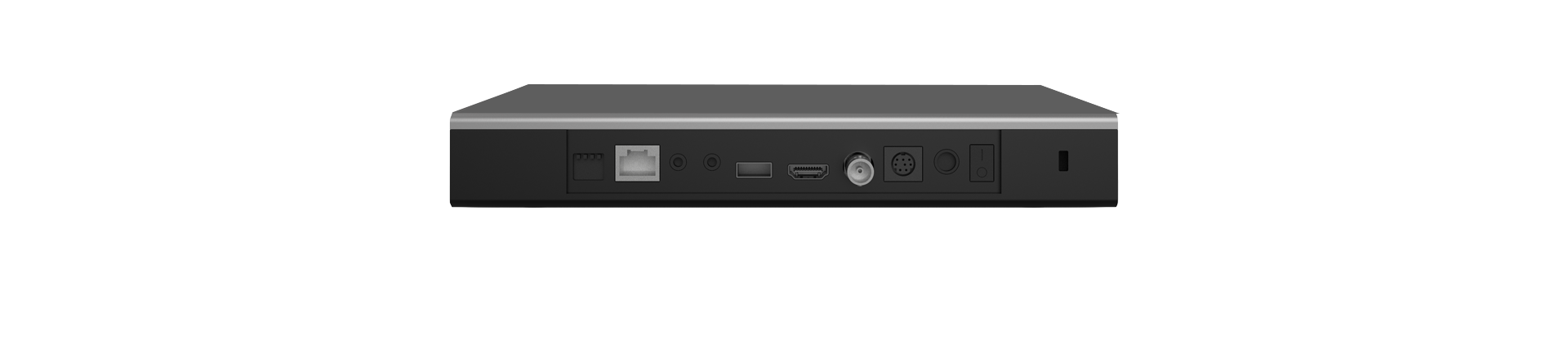

InterfaceSupport USB 3.0, LAN, HDMI, 3G-SDI
Auto Framing with No Man Involved
Using Intelligent Image Algorithm
Auto Zoom in for Attendee Leaving
Camera auto zooms in when there is attendee leaving the room.
Watch Video
Auto Zoom Out for New Attendees
Camera auto zooms out when there are new attendees entering the room.
Watch Video
Extraordinary Intelligent Tracking
Face Detection & Lock Tracking Algorithm
Precise Voice Positioning
Voice Source Localization + Lock Tracking
Strong Anti-Interference Ability
Not Disturbed by Sound and Meeting Environment
Anti-Interference Function
Sounds other than the speaker's voice do not interfere with speech localization;
Sounds such as keyboard typing will not interfere with the camera positioning the speaker.
Precise Positioning
Accurate positioning of speakers can be achieved even if there are multiple people in the same direction.
The Screen Switching is Natural and Smooth
The Meeting Experience is Smoother and Clearer.
Applications
Conference/Education/Training/Event
- Technical Data
- AMC-G200THV2
-

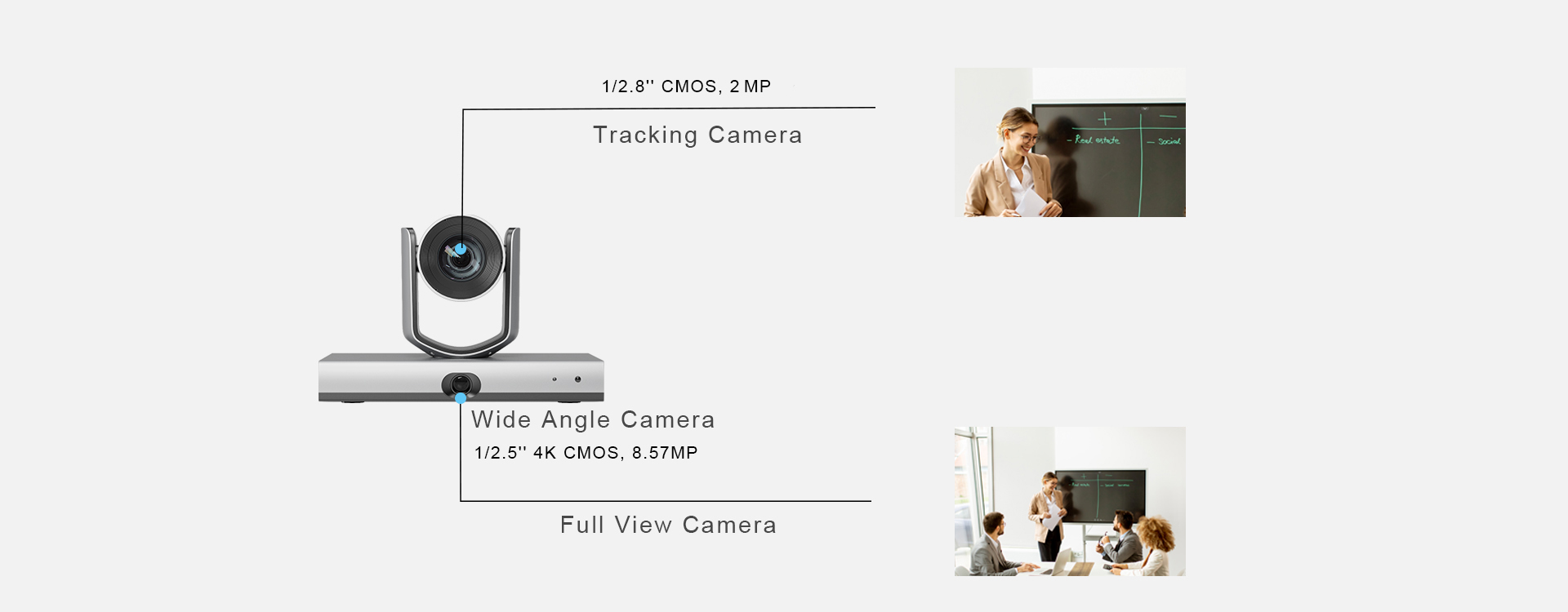

Tracking Camera
- Image Sensor
- 1/2.8” CMOS, 2.14MP
- Focal
- 4.1mm~49.2mm
- Iris
- F1.6~F2.8
- FOV
- 72.5°~6.3°
- Zoom
- Optical: 12X, Digital: 16X
- Focus
- Auto, Manual, PTZ Trigger, One Push Trigger
- Shutter Speed
- 1/50 ~ 1/10,000s
- AGC
- Auto, Manual
- White Balance
- Auto/One Push/Manual/Auto Track/Static Color Temperature
- Exposure
- Auto/Manual/Shutter Priority/Iris Priority/Bright Priority
-
Full View Camera
- Image Sensor
- 1/2.8” 2.14MP
- Lens
- 1.89mm focus
- FOV
- 110°
- White Balance
- Auto
- Exposure
- Auto
-
PTZ
- Pan
- -130° ~ +130°, 0.2° ~ 90°/ s
- Tilt
- -30° ~ +90°, 0.2° ~ 60°/s
- Preset Number
- 64
- OSD
- Yes
-
Interface
- Network
- 1×RJ45:10M/100M, support POE; Video output: 1080P30/P25, 720P30/P25, 360P30/P25; Video Format:H.264/H.265; Network Protocol:ONVIF/RTSP/TCP/UDP/RTMP/RTP; Audio Compression: AAC; Support 3 channel streams, dual closeup view, one channel full view, one channel switch and four streams.
- 3G-SDI
- 1080P60/P50/P30/P25, 720P60/P50
- HDMI
- Support Audio output; 1080P60/P50/P30/P25, 720P60/P50
- USB 2.0
- Type-A HOST
- USB 3.0
- Type-B, 1. Support UVC1.1; 2. UVC Support: H.264/H.265/MJPEG: 1080P60/P50/P30/P25, 720P60/P50/P30/P25, 360P30/P25; YUY2/NV12: 1080P30/P25, 720P30/P25; 3. UAC Audio Format PCM
- Audio
- 1 × 3.5mm LINE IN; 1 × 3.5mm Ref.LINE IN
- Control Interface
- 1 × RS-232 IN, 1 × RS485
-
General
- Control Protocol
- VISCA
- Power
- DC12V; <20W
- Operating Environment
- Temperature: 0°C ~ +40°C
- Storage Environment
- Temperature: -20℃ ~ +60°C
- Dimension (L×W×H)
- 245mm×145mm×165mm
- Net Weight
- ≤2kg
