4KP30
Auto Framing & Speaker Tracking
AMC-G309UV24KP30
Auto Framing & Speaker Tracking
AMC-G309UV2All-in-One Design, Support External Cascade
AMC-G series 4K UHD camera with camera, microphone and speaker integrated, adopts advanced intelligent algorithm, accurate auto framing, speaker tracking.
![](/uploadfiles/2022/07/20220713114222410.jpg?6auY5riF6ZWc5aS05Y+C5pWwMS5qcGc=)
-
High Definition ImagesThe camera gives you clear vision of the scenarios at 4K resolutio
110° UHD Lens
Super Wide HFOV4KP30 UHD Video Giving Superb Image
-
Ultra Wide AngleA Panoramic View of the Scene
110° UHD Lens
Super Wide HFOV4K Lens with HFOV Up to 110°,Meet the Video Conference Needs of Meeting Rooms
-

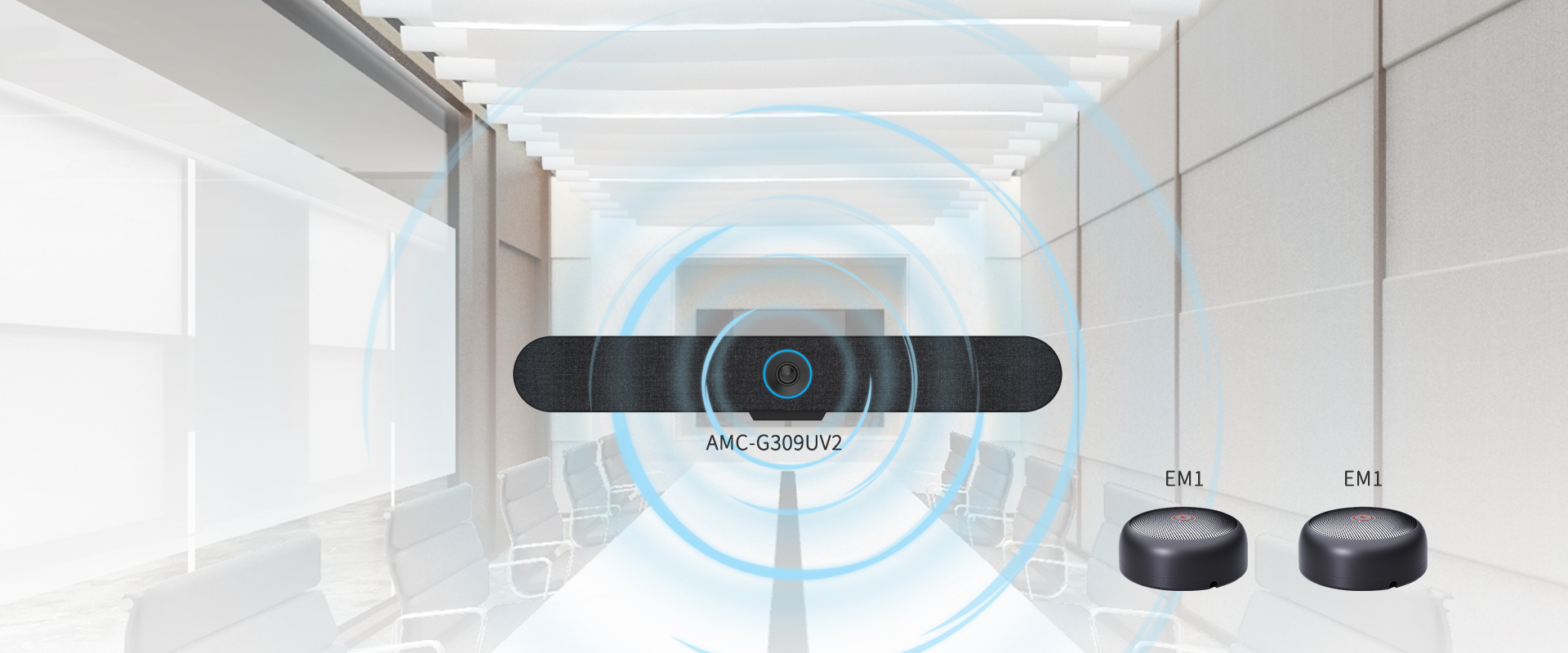

Support CascadeIncrease Pickup Distance
Supporting 2 External Cascade

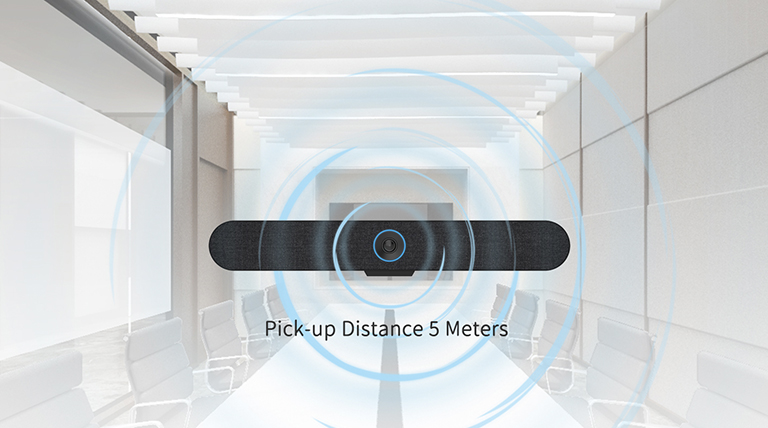

AMC-G309UV2 built-in high-sense mic array, pickup range up to 5 meters, supporting AGC, AEC, ANC, supporting 2 external cascade microphones to extend pickup range up to 12 meters.
\ -
InterfaceSupport USB
![](/uploadfiles/2022/08/20220826085626612.png?RzMwOVVWMi3moYbpgInmiYDmnInkuroucG5n)
Auto Zoom in for Attendee Leaving
Camera auto zooms in when there is attendee leaving the room.
Watch Video![](/uploadfiles/2022/08/20220826085640066.png?RzMwOVVWMi3kurrlkZjnprvlnLoucG5n)
Auto Zoom Out for New Attendees
Camera auto zooms out when there are new attendees entering the room.
Watch Video![](/uploadfiles/2022/08/20220826085654545.png?RzMwOVVWMi3kurrlkZjov5vlnLoucG5n)
Intelligent Recognition
Members of the Parliament Face/Back to the Camera, the Camera can Identify and Frame Selection
![](/hzcakj202204011323/uploadfiles/2022/08/20220806143452292.jpg)
Intelligent Recognition
Intelligently Distinguish Portraits on the Wall.
![](/hzcakj202204011323/uploadfiles/2022/08/20220806143641683.jpg)
Strong Anti-interference Ability
![](/hzcakj202204011323/uploadfiles/2022/08/20220806143702187.jpg)
![](/uploadfiles/2022/08/20220826090504741.png?RzMwOVVWMi3ml6Dkurrlj5HoqIDml7YucG5n)
![](/uploadfiles/2022/08/20220826090520763.png?RzMwOVVWMi3kuIDkurrlj5HoqIDml7YucG5n)
![](/uploadfiles/2022/08/20220826090535188.png?RzMwOVVWMi3lj6bkuIDkurrlj5HoqIDml7YucG5n)
Anti-Interference Function
Sounds other than the speaker's voice do not interfere with speech localization;
Sounds such as keyboard typing will not interfere with the camera positioning the speaker.
![](/uploadfiles/2022/10/20221014104016894.jpg?eGluLmpwZw==)
Precise Positioning
Accurate positioning of speakers can be achieved even if there are multiple people in the same direction.
![](/uploadfiles/2022/08/20220806143104300.jpg?5ZCM5LiA5pa55L2N5Ye6546w5aSa5Lq65Lmf6IO957K+5YeG5qGG6YCJIOaLt+i0nS5qcGc=)
The Screen Switching is Natural and Smooth
The Meeting Experience is Smoother and Clearer.
![](/uploadfiles/2022/08/20220806143127371.jpg?5YiH5o2i5rWB55WF6Ieq54S2IOaLt+i0nS5qcGc=)
![](/hzcakj202204011323/uploadfiles/2022/07/20220727184119613.jpg)
![](/hzcakj202204011323/uploadfiles/2022/08/20220801204937141.png)
- Technical Data
- AMC-G309UV2&EM1
-
Camera (AMC)
- Image Sensor
- 1/2.8” 4K CMOS, 8.46MP
- Focal Lens
- f=2.1mm
- Iris
- F2.2
- Digital Zoom
- 4x
- FOV
- Horizontal: 110°, Vertical: 74°
- Intelligent Function
- Auto framing & speaker tracking
- Min Focus Distance
- 50cm
- Video Output Format
- 4KP30
- Exposure
- Auto/Manual/Shutter Priority
- White Balance
- Auto/Manual
- DNR
- 2D/3D
- Image Flip
- Flip/Mirror
-
Audio (AMC)
- Built-in Mic
- 4 MIC array
- Pick-up Distance
- 5 Meters
- Audio Process
- AEC/ANC/AGC
-
Interface (AMC)
- USB
- 1xUSB3.0, Type B. Support UVC 1.0; MJPEG/H.264/H.265; MJPEG: 4KP30/P25, 1080P30/P25, 720P30/P25, 360P30/P25; H.264: 4KP20, 1080P30/P25, 720P30/P25, 360P30/P25; H.265: 4KP20, 1080P30/P25, 720P30/P25, 360P30/P25
- Network Interface
- RJ45, 10M/100M
- Remote Control
- Support
- Mic Extension
- Support
-
EPTZ (AMC)
- EPTZ
- Support
-
General (AMC)
- Power
- DC12V
- Power Consumption
- <8W
- Operating Environment
- Temperature: 0°C ~ +40°C, Relative Humidity: 10%RH ~ 90 %RH
- Storage Environment
- Temperature: -20℃ ~ +60°C, Relative Humidity: 10%RH ~ 95 %RH
- Dimensions (L×W×H)
- 603mm×74mm×93mm
- Weight
- ≤2kg
-
Microphone EM1
- SNR
- 69dB
- Pick-up Distance
- 3 Meters, 360°
- Cascade Number
- Support up to two
- Dimensions (L×W×H)
- 90mm×90mm×36mm
