1/1.8"
Lecturer Tracking/Auto Framing/Gesture Control
PVC-2301/1.8"
Lecturer Tracking/Auto Framing/Gesture Control

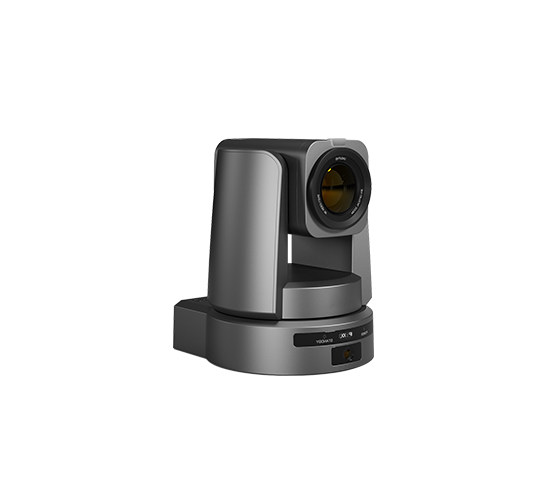

PVC-230 PVC-230
Supports simultaneous output of 4K close-up images and 4K full view images.
PVC-230 has two 1/1.8 inch dual cams, 8.4MP, and can output up to 4KP60 video frames. 12G-SDI optional and supports NDI HX3, DanteAV-H, SRT.

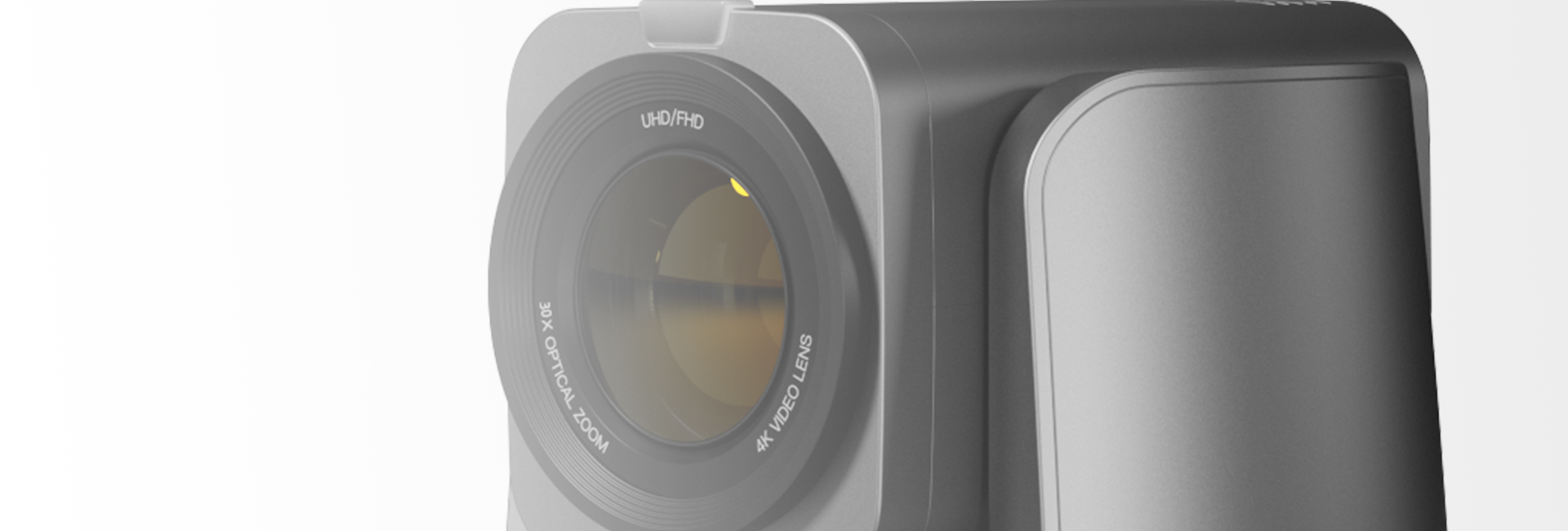

UHD Lens
Ultra High Definition Lens Gives You a Higher-Definition Vision
-
Ultra High Definition ImagesThe camera gives you clear vision of the scenarios at 4K resolution
4KP60
Enjoy a Clear PictureIt delivers super UHD video for your work application.
-
-
Optional 12G-SDIPowerful Transmission Capability
Optional 12G-SDI, Support 3G-SDI, HDMI, RJ45,USB3.0
PVC-230 comes with a variety of interfaces to meet most of the users’ needs in different scenarios. The optional 12G-SDI supports improved video quality for users.
-
High Quality 30X Optical ZoomProvide Clearer Details
30X Optical Zoom
Industry-leading 4K lens with 30X optical zoom and show the details in the large scene.
-
Supports Most Mainstream ProtocolsFaster, Clearer, and Safer Transmission
NDI HX3, Dante AV-H, SRT
The camera supports protocols such as NDI HX3, Dante AV-H, SRT, enabling clearer, faster, and more secure video transmission.
-

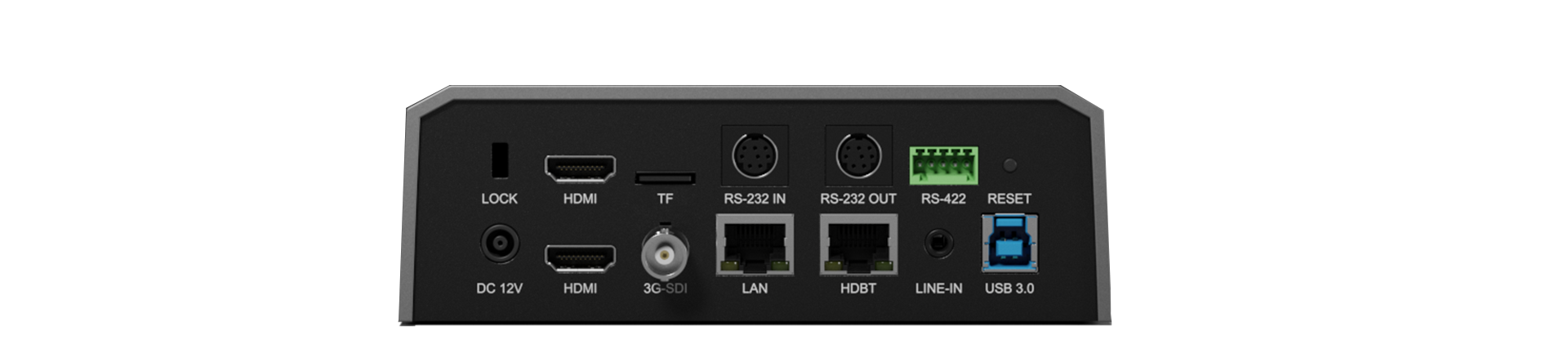

InterfaceOptional 12G-SDI, Support 3G-SDI, HDMI, LAN, USB 3.0, LINE IN.
Extraordinary Intelligent Tracking
Face Detection & Lock Tracking Algorithm
Auto Framing with No Man Involved
Using Intelligent Image Algorithm

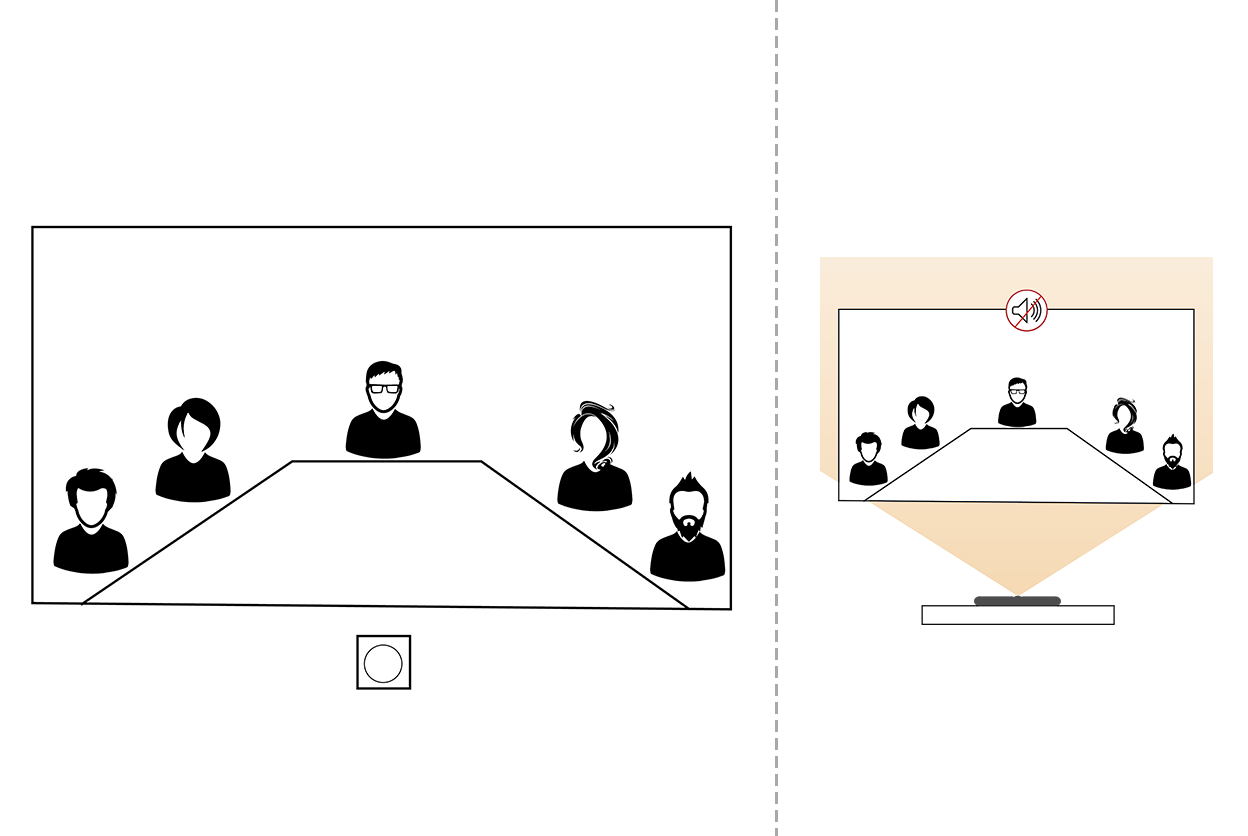

Auto Frame All Attendees
Cameras auto zooms and covers all the attendees in the room.
Auto Zoom in for Attendee Leaving
Camera auto zooms in when there is attendee leaving the room.
Auto Zoom Out for New Attendees
Camera auto zooms out when there are new attendees entering the room.
Precise Voice Positioning
Voice Source Localization + Lock Tracking
Strong Anti-Interference Ability
Not Disturbed by Sound and Meeting Environment
Anti-Interference Function
Sounds other than the speaker's voice do not interfere with speech localization;
Sounds such as keyboard typing will not interfere with the camera positioning the speaker.
Precise Positioning
Accurate positioning of speakers can be achieved even if there are multiple people in the same direction.
The Screen Switching is Natural and Smooth
The Meeting Experience is Smoother and Clearer.
Applications
Education/Conference/Broadcasting/Events
- Technical Data
- PVC-230
-
Tracking Camera
- Image Sensor
- 1/1.8” CMOS, 8.46MP
- Focal Lens
- f=6.9mm~215mm
- Iris
- F1.3~F4.6
- HFOV
- 59°~2°
- Zoom
- Optical: 30X
-
Full View Camera
- Image Sensor
- 1/1.8” CMOS, 8.46MP
- Focal Distance
- f=4.4mm
- Iris
- F2.0
- HFOV
- 85°
-
PTZ
- Pan
- -170° ~ +170°, 0.05° ~ 120°/s
- Tilt
- -30° ~ +90°, 0.051° ~ 90°/s
- Preset Number
- 256
-
Interface
- SDI
- 1 × 3G-SDI, max 1080P60/P59.94/P50;1080I60/I59.94/I50; 1 × 12G-SDI (Optional ), max 4KP60; Support broadcast resolution: max 4KP59.94/P29.97; Output switchable between full-view cam and tracking cam, with PIP;
- Network
- 100M/1000M RJ45 self-adaptive with POE; H.264/H.265, support multi-stream; Simultaneous output of full-view and tracking cam, max 4KP60; Support NDI HX3/Dante AV-H/ONVIF/RTSP/RTMP/SRT/TCP/UDP/RTMPS/VISCA OVER IP; 4.Audio Compression: AAC 5. Support Dual streams.
- USB
- 1 x USB 3.0 Type-A(compatible with HOST), supports audio output UAC, supports color space RGB 420; USB 3.0 is backward compatible with USB 2.0: UVC supports UVC 1.1 protocol; UVC video formats supported: H.264/H.265/MJPEG: up to 4KP60; YUY2/NV12: up to 1080P30
- HDMI
- 1 x HDMI 2.0, with audio output, color space supports YUV/RGB 444 (8bit), YUV 422 (10bit), YUV 420 (8bit), up to 4KP60/P59.94/P50; 1080i60/i59.94/i50;
- One of Three Options
- Choose one from Full NDI, HDBaseT, and SDVoE; Full NDI, capable of audio output, supports POE++; SDVoE, capable of audio output, supports POE++; HD-BaseT, capable of audio output, supports POE++;
- Audio
- 2 Audio-Input XLR Connectors, with Phantom Power Support; Supports ACC/UAC; Sample Rates Supported: 16k, 32k, 48k
- Control Interface
- 1 RS-232/422 Port
- Reset Button
- Restore Factory Settings
- Remote Interface
- IR Remote control
- Security Lock Slot
- IR Remote control1 Kensington Lock
- Memory Card
- Supports 1 external Micro SD slot, with a maximum storage capacity of 2TB.
-
General
- Power
- DC12V, 5A
- Indicator Light
- Power light, status light, dual Tally lights
- Installation Method
- Upright, inverted(panoramic lens adjustable±20°)
- Remote Control Range
- 15m, dual infrared in front and rear of camera
- Operating Temperature
- 0°C ~ +40°C
- Storage Temperature
- -20°C ~ +60°C
- Dimensions(L×W×H)
- 239mm*208mm*291mm
-
- Focusing Method
- CDAF、Face AF
- Image Mode
- Supports one-click switching between multiple image modes
- Wide Dynamic Range
- Dynamic Range: 0/1/2/3/4/5
- Metering Mode
- Top, Bottom, Center, Average, Left, Right
-
- Focusing Method
- PDAF, CDAF, Face AF
- Image Mode
- Supports one-click switching between multiple image modes
- Wide Dynamic Range
- Dynamic Range: 0/1/2/3/4/5
- Metering Mode
- Top, Bottom, Center, Average, Left, Right
