1080P60

Support DVI Output

HMC-NS3003N

1080P60

Support DVI Output

HMC-NS3003N

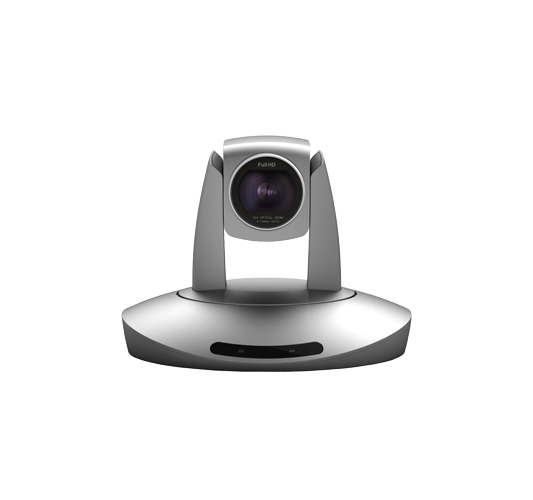

SDI+DVI HD PTZ Camera

1/2.8" EXMOR CMOS Image Sensor, Up to 2.14MP; 30X/20X Optical Zoom Optional.

HD Lens
High-Definition Lens Gives You a Higher-Definition Vision
  • HMC-S3003

    Sensor Size

    Pixel

    Focal Length

    Iris

    HFOV

    Optical Zoom

  • HMC-A2001

    Sensor Size

    Pixel

    Focal Length

    Iris

    HFOV

    Optical Zoom

High Definition Images
The camera gives you clear vision of the scenarios at 1080P resolution

1/2.8" CMOS
Up to 2.14MP

Simultaneously Outputs of HD and SD Videos


Applications
Conference/Education/Training/Event


HMC-A2001/HMC-S3003
Technical Data
HMC-A2001
HMC-S3003
  • Camera
    Image Sensor
    1/2.8” CMOS, 2.14MP
    1/2.8” CMOS, 2.14MP
    Video Format
    1080P60/P50/P30/P25, 1080I60/I50, 720P60/P50, 720P30/P25
    1080P60/P59.94/P50/P30/P29.97/P25, 1080I60/I59.94/I50, 720P60/P59.94/P50/P30/P29.97/P25
    Focal Length
    4.7~94.0mm
    4.3~129.0mm
    FOV
    59.5°°~2.9°
    63.7°~2.3°
    Optical Zoom
    20X
    30X
    Focus
    Auto, Manual, PTZ Trigger, One Push Trigger
    Shutter Speed
    1/1~1/10,000s
    White Balance
    Auto, Manual, Indoor, Outdoor, One Push, Auto Tracking
    WDR
    Support
    BLC
    Support
    SN Ratio
    ≥50dB
  • PTZ
    Pan
    -170° ~ +170°, 0.1° ~ 120°/S
    Tilt
    -30° ~ +90°, 0.1° ~ 90°/S
    Preset Number
    256
    OSD
    Yes
    Image Flip
    Yes
  • Interface
    Video Output(HD)
    3G-SDI, DVI-I
    Video Output(SD)
    CVBS
    Control Interface
    RS-232 In, RS-232 Out , RS-422/RS-485
  • General
    Protocols
    VISCA (support daisy chain) / PELCO-P / PELCO-D
    Address
    0~63
    Power
    DC12V
    Power Consumption
    <20W
    Operating Environment
    Temperature: 0°C ~ +40°C, Relative Humidity: 10%RH ~ 90 %RH
    Storage Environment
    Temperature: -20℃ ~ +60°C, Relative Humidity: 10%RH ~ 95 %RH
    Dimensions (L×W×H)
    220mm×202mm×162mm
    Weight
    1.7KG
