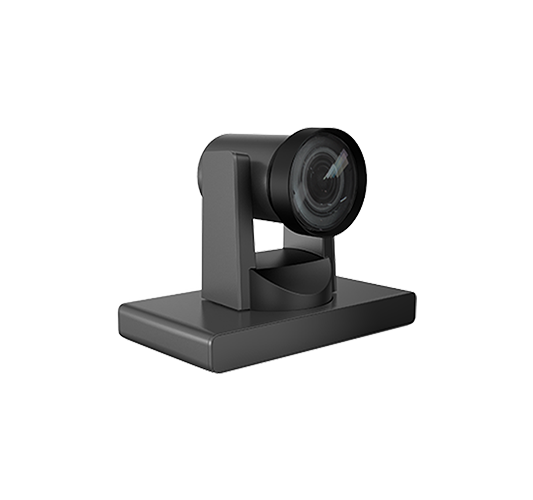

4KP30

UHD Broadcasting Professional Camera

AMC-NH1202

4KP30

UHD Broadcasting Professional Camera

AMC-NH1202

High Definition and Good Real-Time Performance

4K Wide Angle Lens, 12X Optical Zoom, Max 82° FOV; Dual Stream, Supports Multi-Level Image Quality

HD Lens
High-Definition Lens Gives You a Higher-Definition Vision
  • AMC-NH1202

    Sensor Size

    Pixel

    Focal Length

    Iris

    FOV

    Optical Zoom

High Definition Images
The camera gives you clear vision of the scenarios at 4K resolution

Ultra HD Lens Brings You
in Visual Feast Tour

A camera specially designed for radio and television. The 1/1.8 "Ultra HD CMOS lens is used to truly restore the scene picture, with rich colors and full details.


Timely & Clear
Very Low-Latency Video Transport

Powerful Processor
Advanced Technology

You will never miss any wonderful moment.

NDI Camera
Support NDI

NDI®|HX Enhanced

NDI® technology makes video creation and sharing accessible, easy and fun for millions.


HEVC Video Compression Capabilities
HEVC, or H.265, Offers about Double the Data Compression Ratio at the Same.

Video Quality Level and Substantially

Improve coding efficiency, saving 50%-60% of your bandwidth or storage space, or dramatically increasing video quality at the same bit rate.

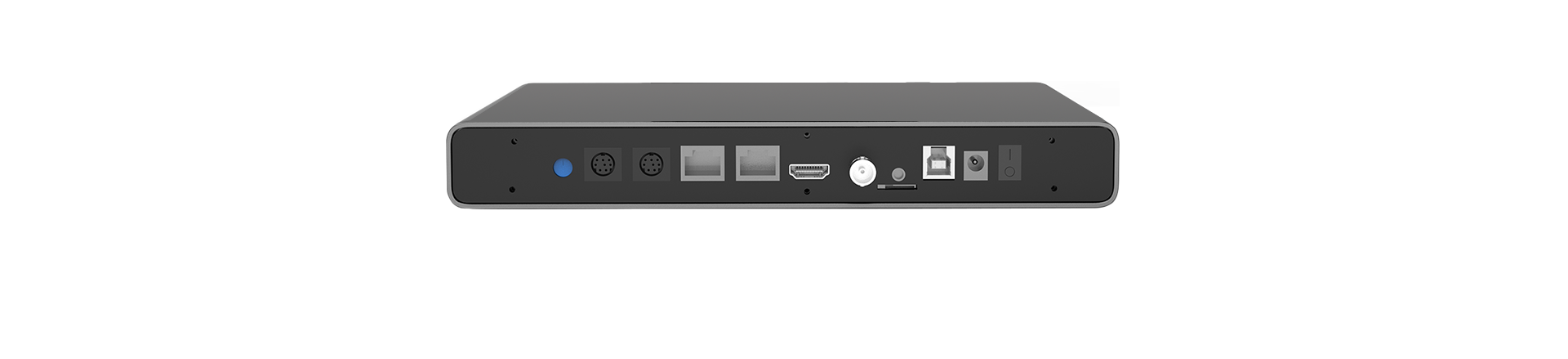

Interface
Connect and Collaborate with Ease, Providing Ethernet, HDMI, 3G-SDI and Optional HDBaseT Outputs.


Applications
Academic Lectures/Live Broadcast of Events/Live Broadcast of Activities/Outdoor Activities


AMC-NH1202
Technical Data
AMC-NH1202
  • Camera
    Image Sensor
    1/1.8” CMOS, 8.41MP
    Focal Lens
    4.2mm~50.4mm
    Iris
    F1.8~F2.8
    FOV Horizontal
    82.6°~8°
    Zoom
    Optical: 12X, Digital: 12X
    Focus
    Auto, Manual, PTZ Trigger, One Push
    Shutter Speed
    1/25 ~ 1/10,000s
    AGC
    Auto/Manual
    White Balance
    Auto, Indoor, Outdoor, One Push, Auto Tracking, Sodium, Fluorescent
    Exposure
    Auto, Manual, Shutter Priority, Iris Priority
    BLC
    Support
    SN Ratio
    ≥50dB
    DNR
    2D/3D
    WDR
    Support
  • PTZ
    Pan
    -170°~+170°, 0.1°~120°/ S
    Tilt
    -30°~+90°, 0.1°~80°/ S
    Preset Number
    256
    OSD
    Yes
  • Video Format
    Video Output
    4KP30/25, 1080P60/50/30/25, 1080I60/50, 720P60/50
  • Network
    Max Image Size
    4KP30
    Video Compression
    H.265/H.264
    Audio Compression
    AAC
    Protocols
    HTTP/RTMP/RTSP/TCP/UDP/ONVIF
    Dual Stream
    Yes
  • Interface
    Video Output
    HDMI, 3G-SDI, HDBaseT(optional)
    Audio Input
    1×Line In
    Network Interface
    10M/100/1000M, NDI, POE(optional)
    Control Interface
    RS-232 In , RS-232 Out , RS-485
  • General
    Protocols
    VISCA (support daisy chain), PELCO-P, PELCO-D
    Power
    DC12V
    Power Consumption
    <20W
    Operating Environment
    Temperature: 0°C ~ +40°C, Relative Humidity: 10%RH ~ 90 %RH
    Storage Environment
    Temperature: -20℃ ~ +60°C, Relative Humidity: 10%RH ~ 95 %RH
    Dimensions (L×W×H)
    251mm×145mm×194mm
    Weight
    2.2KG
