4KP30

Output Clear Pictures in Real Time

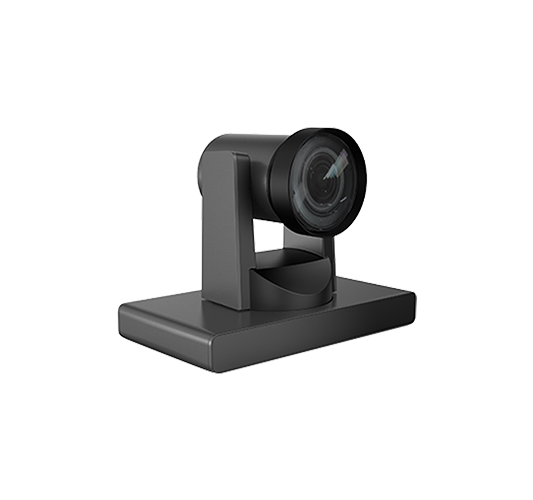

AMC-H1202

4KP30

Output Clear Pictures in Real Time

AMC-H1202

HD Image Quality

AMC series UHD PTZ camera, with ultra-low delay, adopts high-quality HD lens and outputs 1080p HD pictures.

HD Lens
High-Definition Lens Gives You a Higher-Definition Vision
  • AMC-H1202

    Sensor Size

    Pixel

    Focal Length

    Iris

    FOV

    Optical Zoom

High Definition Images
The camera gives you clear vision of the scenarios at 4K resolution

Wide Angle UHD Lens
Transmitting Clear Pictures

4KP30 HD video output, equipped with intelligent exposure function, optimizes the image to restore the true color, and the details are clearly visible to improve the efficiency.


Delicate Color
Rich Details

High Color Reduction
Full Display of Live HD Pictures

The excellent color restoration ability makes the audience in front of the screen feel immersive.

Interface
Connect and Collaborate with Ease, Providing Ethernet, HDMI, 3G-SDI and Optional HDBaseT Outputs


Applications
Conference/Education/Training/Event


AMC-H1202
Technical Data
AMC-H1202
  • Camera
    Image Sensor
    1/1.8” CMOS, 8.41MP
    Focal Lens
    4.2mm~50.4mm
    Iris
    F1.8~F2.8
    FOV Horizontal
    82.6°~8°
    Zoom
    Optical: 12X, Digital: 12X
    Focus
    Auto, Manual, PTZ Trigger, One Push
    Shutter Speed
    1/25 ~ 1/10,000s
    AGC
    Auto/Manual
    White Balance
    Auto, Indoor, Outdoor, One Push, Auto Tracking, Sodium, Fluorescent
    Exposure
    Auto, Manual, Shutter Priority, Iris Priority
    BLC
    Support
    SN Ratio
    ≥50dB
    DNR
    2D/3D
    WDR
    Support
  • PTZ
    Pan
    -170°~+170°, 0.1°~120°/ S
    Tilt
    -30°~+90°, 0.1°~80°/ S
    Preset Number
    256
    OSD
    Yes
  • Video Format
    Video Output
    4KP30/25, 1080P60/50/30/25, 1080I60/50, 720P60/50
  • Network
    Max Image Size
    4KP30
    Video Compression
    H.265/H.264
    Audio Compression
    AAC
    Protocols
    HTTP/RTMP/RTSP/TCP/UDP/ONVIF
    Dual Stream
    Yes
  • Interface
    Video Output
    HDMI, 3G-SDI, HDBaseT(optional)
    Audio Input
    1×Line In
    Network Interface
    10M/100/1000M, NDI, POE(optional)
    Control Interface
    RS-232 In , RS-232 Out
  • General
    Protocols
    VISCA, PELCO-P, PELCO-D
    Power
    DC12V
    Power Consumption
    <20W
    Operating Environment
    Temperature: 0°C ~ +40°C, Relative Humidity: 10%RH ~ 90 %RH
    Storage Environment
    Temperature: -20℃ ~ +60°C, Relative Humidity: 10%RH ~ 95 %RH
    Dimensions (L×W×H)
    251mm×145mm×194mm
    Weight
    <2.2KG
