1080P30

20X Optical Zoom

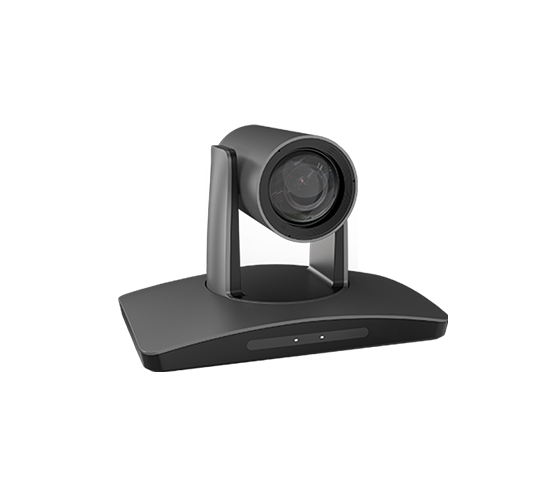

AMC-NE220NV3

1080P30

20X Optical Zoom

AMC-NE220NV3

High Definition and Good Real-Time Performance

AMC series professional streaming PTZ camera, with ultra-low delay, adopts high-quality HD lens and outputs 1080p HD pictures.

HD Lens
High-Definition Lens Gives You a Higher-Definition Vision
  • AMC-NE220NV3

    Sensor Size

    Pixel

    Focal Length

    Iris

    FOV

    Optical Zoom

High Definition Images
The camera gives you clear vision of the scenarios at 1080P resolution

Fast Focus
Enjoy a Clear Picture

NDI professional camera has high definition and good real-time performance.


Timely & Clear
Very Low-Latency Video Transport

Powerful Processor
Advanced Technology

You will never miss any wonderful moment.

NDI Camera
Support NDI

NDI®|HX Enhanced

NDI® technology makes video creation and sharing accessible, easy and fun for millions.


Interface
Support HDMI, LAN, SDI, USB, LINE IN, Support H.264、H.265


Applications
Academic Lectures/Live Broadcast of Events/Live Broadcast of Activities/Outdoor Activities


AMC-NE220NV3
Technical Data
AMC-NE220NV3
  • Camera
    Image Sensor
    1/2.8” CMOS, 2.14MP
    Focal Lens
    4.7mm~94.0mm
    Iris
    F1.6~F3.5
    FOV Horizontal
    59.5°~2.9°
    Zoom
    Optical: 20X, Digital: 12X
    Focus
    Auto, Manual, PTZ Trigger, One Push
    Shutter Speed
    1/1 ~ 1/10,000s
    AGC
    Auto/Manual
    White Balance
    Auto, Indoor, Outdoor, One Push, Manual, Auto Tracking, Sodium, Fluorescent
    Exposure
    Auto, Manual, Shutter Priority, Iris Priority, Smart
    WDR
    Support
    BLC
    Support
    DNR
    2D/3D
    SN Ratio
    ≥50dB
  • PTZ
    Pan
    -170° ~ +170°, 0.1° ~ 120°/S
    Tilt
    -30° ~ +90°, 0.1° ~ 80°/s
    Preset Number
    256
    OSD
    Yes
    Image Flip
    Yes
  • SDI Output
    Video Format
    1080I60/I50, 1080P60/P50/P30/P25, 720P60/P50
  • Network
    Max Image Size
    1080P60
    Video Compression
    H.265/H.264
    Audio Compression
    AAC
    Protocols
    ONVIF/RTSP/RTMP/HTTP/TCP/UDP
    Dual Stream
    Support
  • Interface
    Video Output
    1×HDMI, 1×3G-SDI, 1×USB2.0, 1×Ethernet
    Audio
    1×Line In
    Network Interface
    10M/100/1000M RJ45, NDI, POE(optional)
    Control Interface
    1×RS-485, 1×RS-232 In , 1×RS-232 Out
  • General
    Protocols
    VISCA (support daisy chain), PELCO-P, PELCO-D
    Address
    0~63
    Power
    DC12V
    Power Consumption
    <20W
    Operating Environment
    Temperature: 0°C ~ +40°C, Relative Humidity: 10%RH ~ 90 %RH
    Storage Environment
    Temperature: -20℃ ~ +60°C, Relative Humidity: 10%RH ~ 95 %RH
    Dimensions (L×W×H)
    243mm×145mm×163mm
    Weight
    1.2KG
